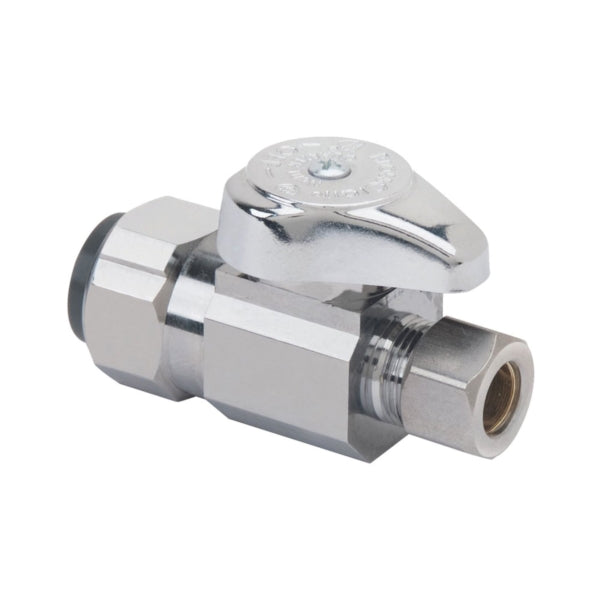

BrassCraft® 1/2 in nominal push connect inlet x 3/8 in OD compression outlet 1/4-turn straight valve controls water flow to household plumbing fixtures like faucets, toilets, dishwashers, icemakers, washing machines. The straight valve is most often used where the water pipe enters the room from the floor. With a 90 deg turn of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.
Product Details
Manufacturer: BRASS CRAFT
Manufacturer's Part Number: G2PS14X CD
Show me more Shut-Off Valves
Product Features
- Has zinc die-cast handle
- For use in potable water distribution systems
- 100% leak tested to ensure reliable, leak-free performance
- Easy-to-remove handle protects against accidental operation during rough-ins
- Machined one-piece brass body provides strength, durability and long-lasting performance
- One-piece shut-off mechanism provides smooth On-Off operation without freeze-up even after long periods of non-use
Product Specifications
| Body Material | Brass |
| Connection Size | 1/2 x 3/8 in |
| Connection Type | Push-Connect x Compression |
| Dimensions | 2.45 in L |
| Finish | Chrome |
| Media | Potable Water |
| Number of Ports/Ways | 2 |
| Pressure Rating | 125 psi |
| Softgoods Material | EPDM Rubber |
| Temperature Rating | 40 to 140 deg F |
| Trim Material | Brass |
Product Documents
| Specification Sheet | Click here to download |
| Instruction/Installation Manual | Click here to download |
