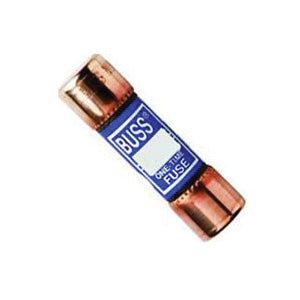

Cartridge fuses are used to protect motors and branch circuits where higher amps or volt ratings are required. General-Purpose fuses have no time-delay and protect fuse panels, appliances and branch circuits.
Product Details
Manufacturer: EATON
Manufacturer's Part Number: NON-15
Show me more Cartridge Fuses
Product Features
- Basic protection 250 V NON Class K5 and H general-purpose, non-current-limiting, one-time fuses
- Protect lighting, heating and other circuits not subject to temporary surges and where available short-circuit currents are relatively low
- NON one-time fuses do not have any appreciable degree of time delay and thus should not be specified in circuits where large transients or motor overloads occur
Product Specifications
| Body Material | Melamine |
| Current Rating | 15 A |
| Diameter | 0.56 in |
| Element Type | Single |
| Fuse Type | Cartridge |
| Interrupt Rating | 50 kA |
| Length | 2 in |
| Rejection/Non-Rejection | Non-Rejection |
| Voltage Rating | 250 VAC, 125 VDC |
Product Documents
| Catalog | Click here to download |
| Specification Sheet | Click here to download |
