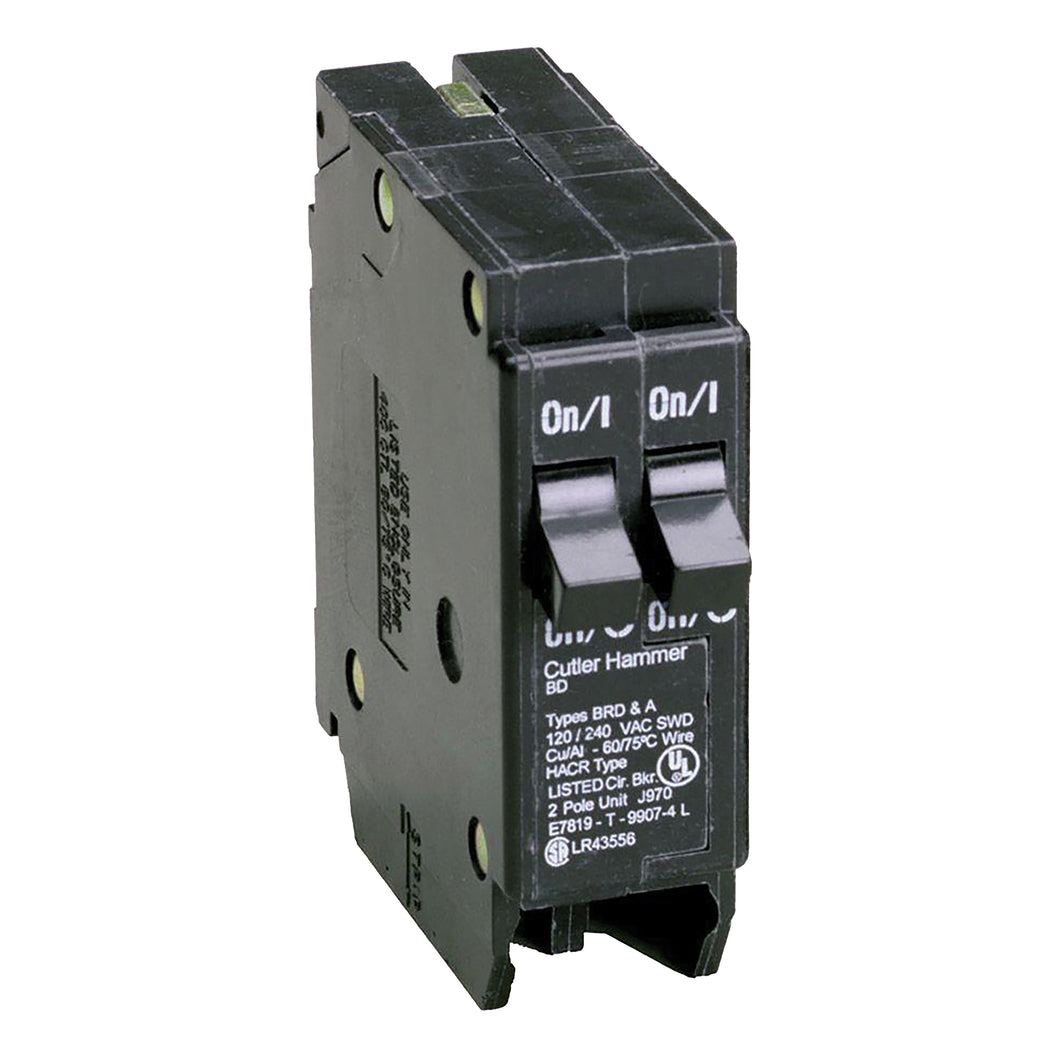

Switching duty rating, duplex type breaker requires 1 in per breaker. Thermal magnetic 40 deg C breakers have rejection tab feature, allows only 42 circuits in the panel in compliance with NEC article 384-15. Interchangeable will replace Bryant, Challenger and Westinghouse. Type BR 120/240 V. 10,000 AIR. 1 in per breaker.
Product Details
Manufacturer: EATON
Manufacturer's Part Number: BD1515
Show me more Circuit Breakers
Product Specifications
| Actuator Type | Magnetic, Thermal |
| Current Rating | 15 A |
| Dimensions | 3.1 in L x 0.98 in W x 2.89 in H |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 1 |
| Number of Spaces | 1 |
| Operating Frequency | 50/60 Hz |
| Operating Temperature | 40 deg C |
| Suitable for | Overload and Short Circuit Protection of Home Electrical System |
| Terminal Type | Feed-Thru |
| Trip Type | Instantaneous |
| Type | Duplex |
| Voltage Rating | 120 V |
| Wire Size | 14 to 4 AWG |
