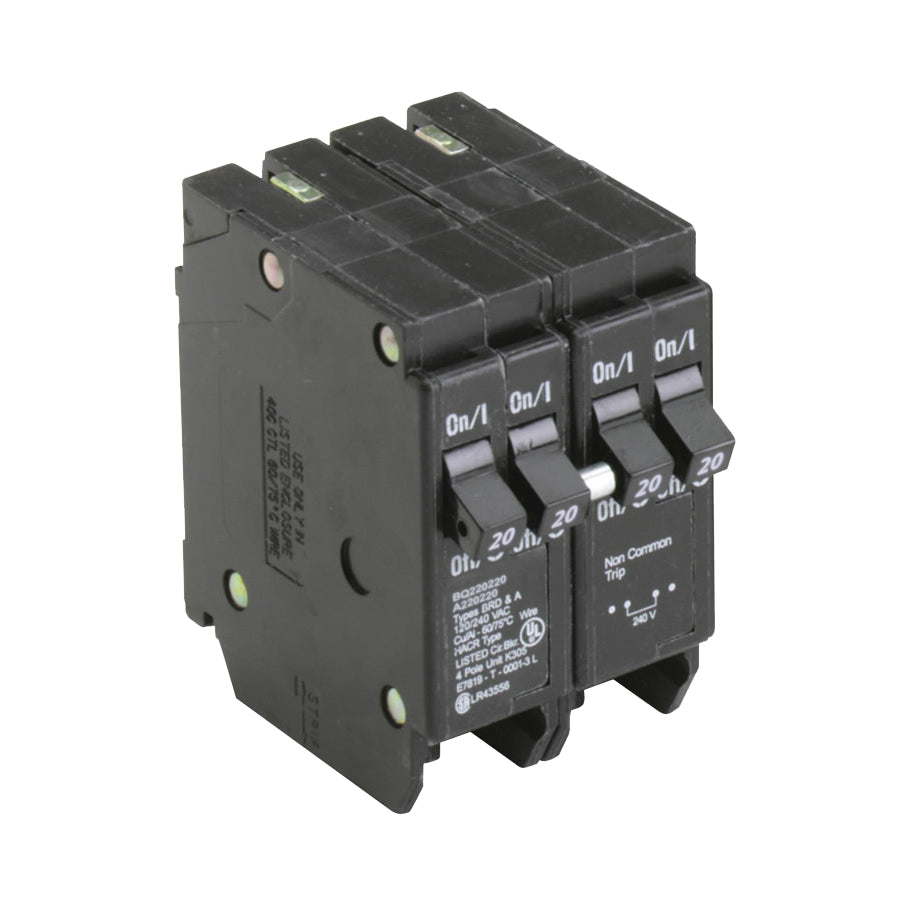

 Cutler-Hammer BQ220220 Circuit Breaker with Rejection Tab, Quad, Type BQ, 20 A, 4 -Pole, 120/240 V, Plug Mounting

Cutler-Hammer BQ220220 Circuit Breaker with Rejection Tab, Quad, Type BQ, 20 A, 4 -Pole, 120/240 V, Plug Mounting

SKU: 4931622

Brand: Cutler-Hammer

Regular price
$39.99
Sale price
$39.99
Regular price
$0.00
Sold out
Unit price
per
In stock for FREE pickup in Whitinsville

CTL Quadplex breaker with rejection tab, 2-pole outer independent trip and 2-pole center independent trip. Requires two 1 in spaces, Wire size range #14-4, 120/240 VAC.9 lb weight, 3 in x 2 in x 3 in. UL listed, Meets UL 489. Listing for HACR applications. Meets Federal Spec classification W-C375. 120/240 V, 10,000 AIC interrupting capacity,.

Product Details

Manufacturer: EATON

Manufacturer's Part Number: BQ220220

Show me more Circuit Breakers

Product Specifications

Actuator Type Magnetic, Thermal
Current Rating 20 A
Dimensions 3.1 in L x 1.97 in W x 2.89 in H
Interrupt Rating 10 kA
Mounting Type Plug
Number of Phases 1
Number of Poles 4
Operating Frequency 50/60 Hz
Operating Temperature 60 to 75 deg C
Terminal Type Feed-Thru
Type Quad, Type BQ
Voltage Rating 120/240 V
Wire Size 14 to 4 AWG

Product Documents

Catalog Click here to download
