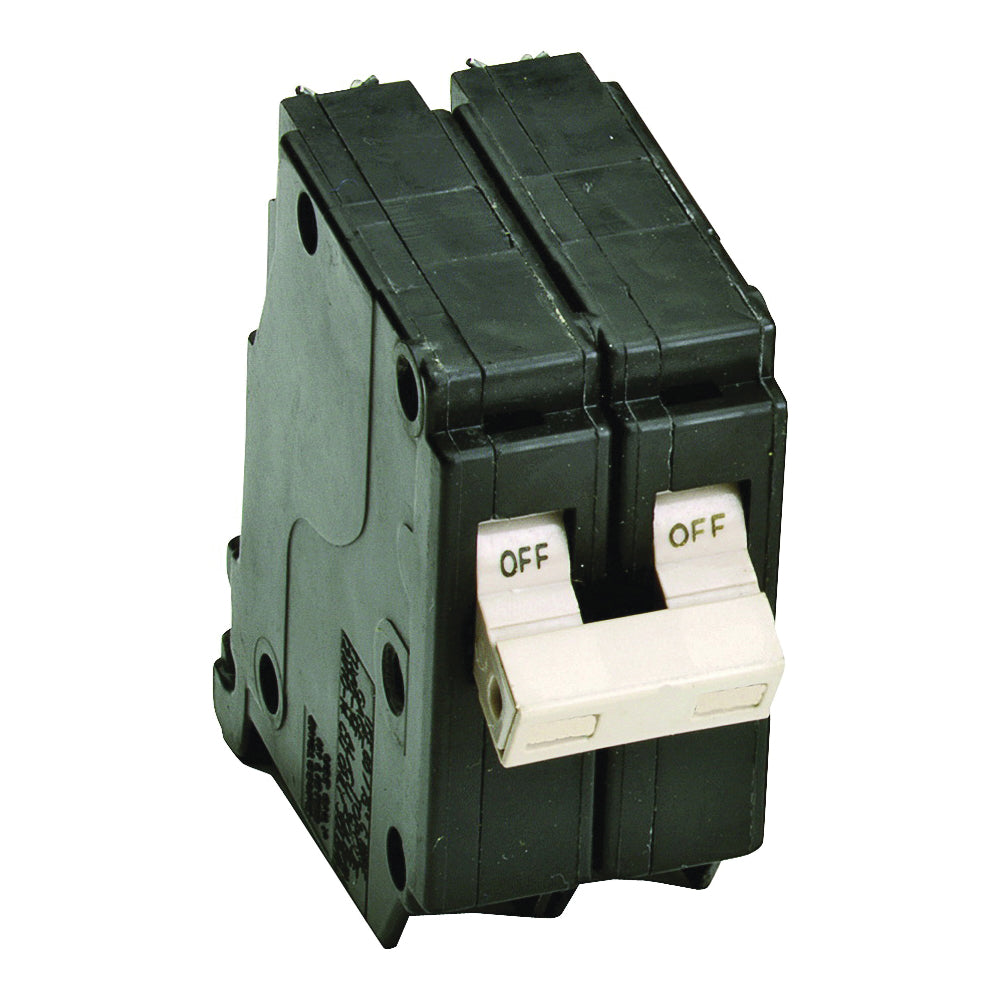

 Cutler-Hammer CH260 Circuit Breaker, Mini, Type CH, 60 A, 2 -Pole, 120/240 V, Instantaneous Trip, Plug Mounting

Cutler-Hammer CH260 Circuit Breaker, Mini, Type CH, 60 A, 2 -Pole, 120/240 V, Instantaneous Trip, Plug Mounting

SKU: 6066450

Brand: Cutler-Hammer

Regular price
$32.99
Sale price
$32.99
Regular price
$0.00
Sold out
Unit price
per
In stock for FREE pickup in Whitinsville

Eaton has enhanced its premium Type CH residential circuit breakers, making the ideal even better. The Type CHF AFCI breakers also include advanced electronics that reduce nuisance tripping and a standard diagnostic LED indicating one of seven trip codes. These features further establish the CH series of products as ultimate in class.

Product Details

Manufacturer: EATON

Manufacturer's Part Number: CH260

Show me more Circuit Breakers

Product Features

  • Space saving 3/4 in design accommodates more breakers per panel
  • Tri Drive screw accepts flat, Robertson or Phillips drivers, making it easier for electricians to install

Product Specifications

Actuator Type Magnetic, Thermal
Current Rating 60 A
Dimensions 3 in L x 3/4 in W x 4 in H
Interrupt Rating 10 kA
Mounting Type Plug
Number of Phases 1
Number of Poles 2
Number of Spaces 2
Operating Frequency 50/60 Hz
Operating Temperature 60 to 75 deg C
Suitable for Type CH Load Centers
Trip Type Instantaneous
Type Mini, Type CH
Voltage Rating 120/240 V
Wire Size 14 to 2 AWG

Product Documents

Catalog Click here to download
Specification Sheet Click here to download
