Eaton has enhanced its premium Type CH residential circuit breakers, making the ideal even better. In addition to the industry exclusive "Trip to OFF" and simple 1-step reset feature, Eaton has added a trip flag to visibly indicate breaker status. Along with Tri-Drive screws and new markings that highlight ratings and the Eaton brand. These additional features truly make this product a enhanced offering for residential, light commercial and OEM applications.
Product Details

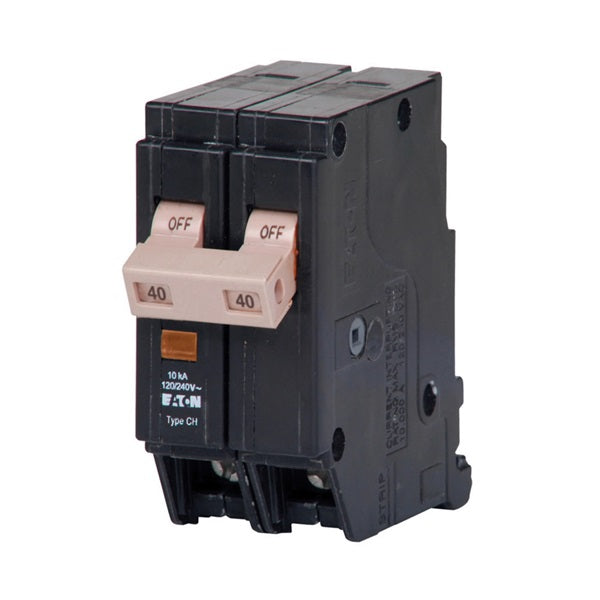

Manufacturer: EATON
Manufacturer's Part Number: CHF240CS
Show me more Circuit Breakers
Product Features
- Easy to reset
- Easy to install
- Ultimate performance
- Trip flag visibly indicates breaker status
- Space saving 3/4 in design accommodates more breakers per panel
- Circuit breaker is clearly marked identifying amperage, ratings and Eaton brand
- Tri Drive screw accepts flat, Robertson or Phillips drivers, making it easier for electricians to install
- Exclusive Trip to OFF and simple one-step reset breaker feature eliminates the need to turn the breaker off before turning to the ON position
Product Specifications
| Actuator Type | Magnetic, Thermal |
| Current Rating | 40 A |
| Dimensions | 6 in L x 4 in W x 2 in H |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 2 |
| Number of Spaces | 2 |
| Operating Frequency | 50/60 Hz |
| Operating Temperature | 60 to 75 deg C |
| Suitable for | Type CH Load Centers |
| Trip Type | Common, Fixed |
| Type | Mini, Type CHF |
| Voltage Rating | 120/240 V |
| Wire Size | 10 to 1/0 AWG |
