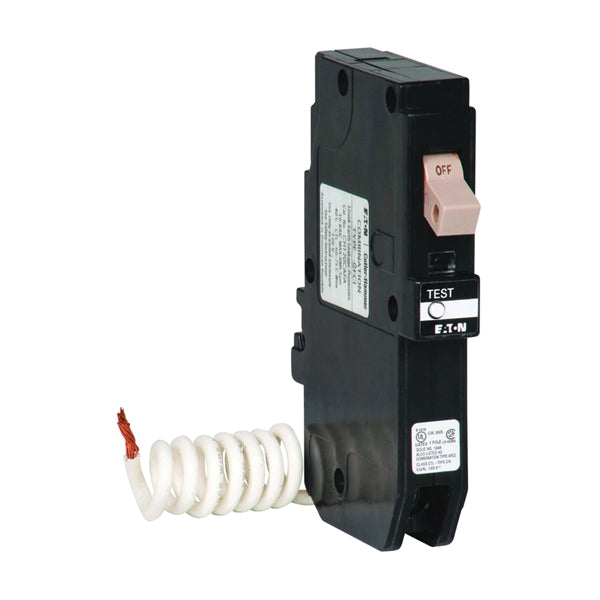

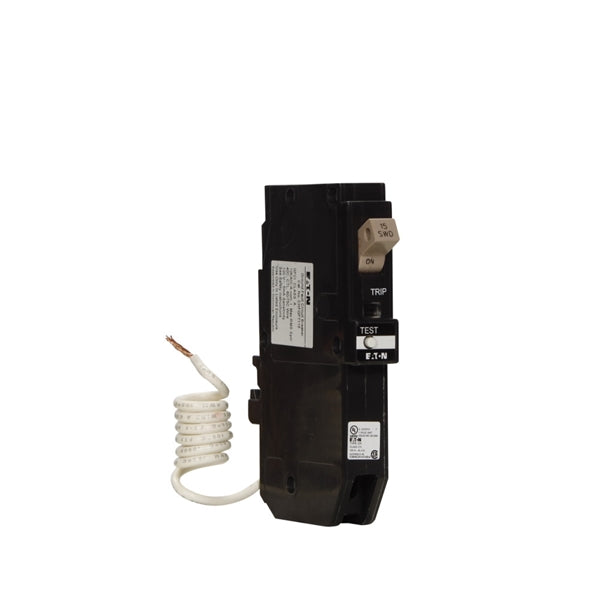

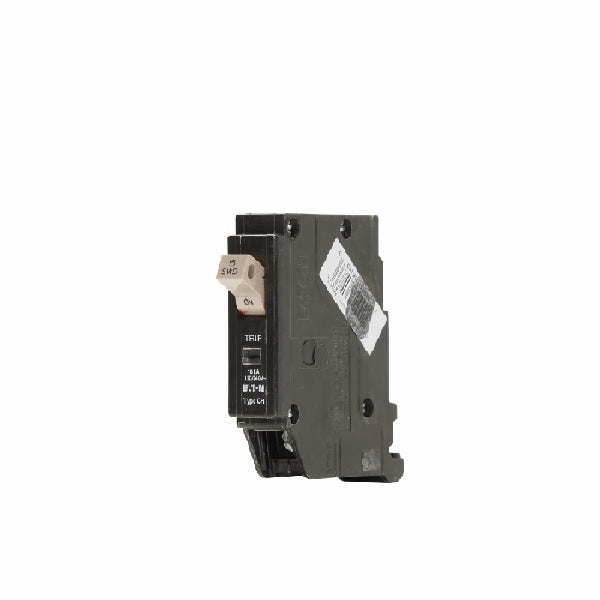

Automatically senses hot wire-to-ground faults and shuts off the power. Auto-monitoring function provides periodic automatic testing of GFCI. If the self-test detects that GFCI protection might be compromised it indicates an alert. 10 kAIC capacity.
Product Details
Manufacturer: EATON
Manufacturer's Part Number: CHFGFT115
Show me more Circuit Breakers
Product Specifications
Current Rating | 15 A |
Dimensions | 3-1/2 in L x 1 in W x 3 in H |
Interrupt Rating | 10 kA |
Mounting Type | Plug |
Number of Phases | 1 |
Number of Poles | 1 |
Number of Spaces | 1 |
Operating Frequency | 50/60 Hz |
Operating Temperature | 60 to 75 deg C |
Type | GFCI, Type CH |
Voltage Rating | 120/240 V |
Wire Size | 14 to 6 AWG |
Product Documents
Specification Sheet | Click here to download |
