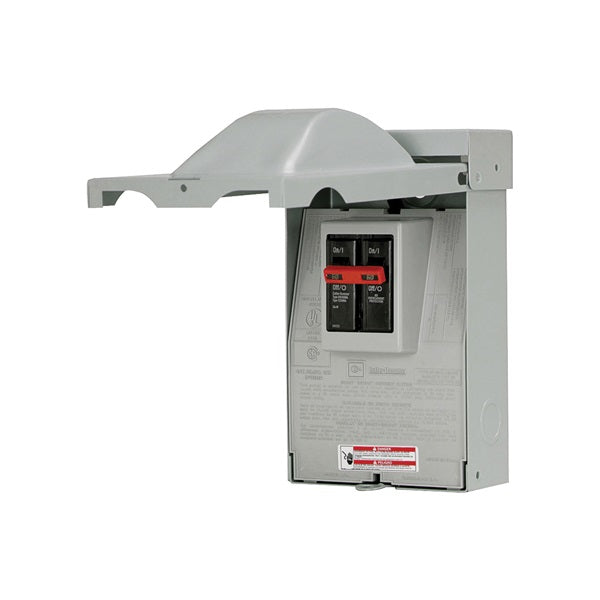

Air conditioning disconnect, molded case switch looks like a circuit breaker but operates like an ordinary household light switch. 60 A, 2-pole, 240 VAC. Metallic, galvanized steel enclosure, NEMA 3R, rainproof. Packaged for retail sale. Wire size range Cu or Al at 60 or 70 deg C, #14-3. UL listed, CSA approved.
Product Details
Manufacturer: EATON
Manufacturer's Part Number: DPB222RP
Show me more Disconnect Switches
Product Features
- Plug-In switch eliminates the need for pullout handles
- Rugged construction in a disconnect switch that looks like a circuit breaker but operates like an ordinary household light switch
Product Specifications
Color | Gray |
Current Rating | 60 A |
Enclosure Material | Steel |
Height | 8.6 in |
HP Rating | 10 hp |
Length | 5.3 in |
NEMA Rating | NEMA 3R |
Number of Phases | 1 |
Number of Poles | 2 |
Number of Wires | 2 |
Type | Non-Automatic |
Voltage Rating | 240 V |
Wattage Rating | 14,400 W |
Width | 3.74 in |
