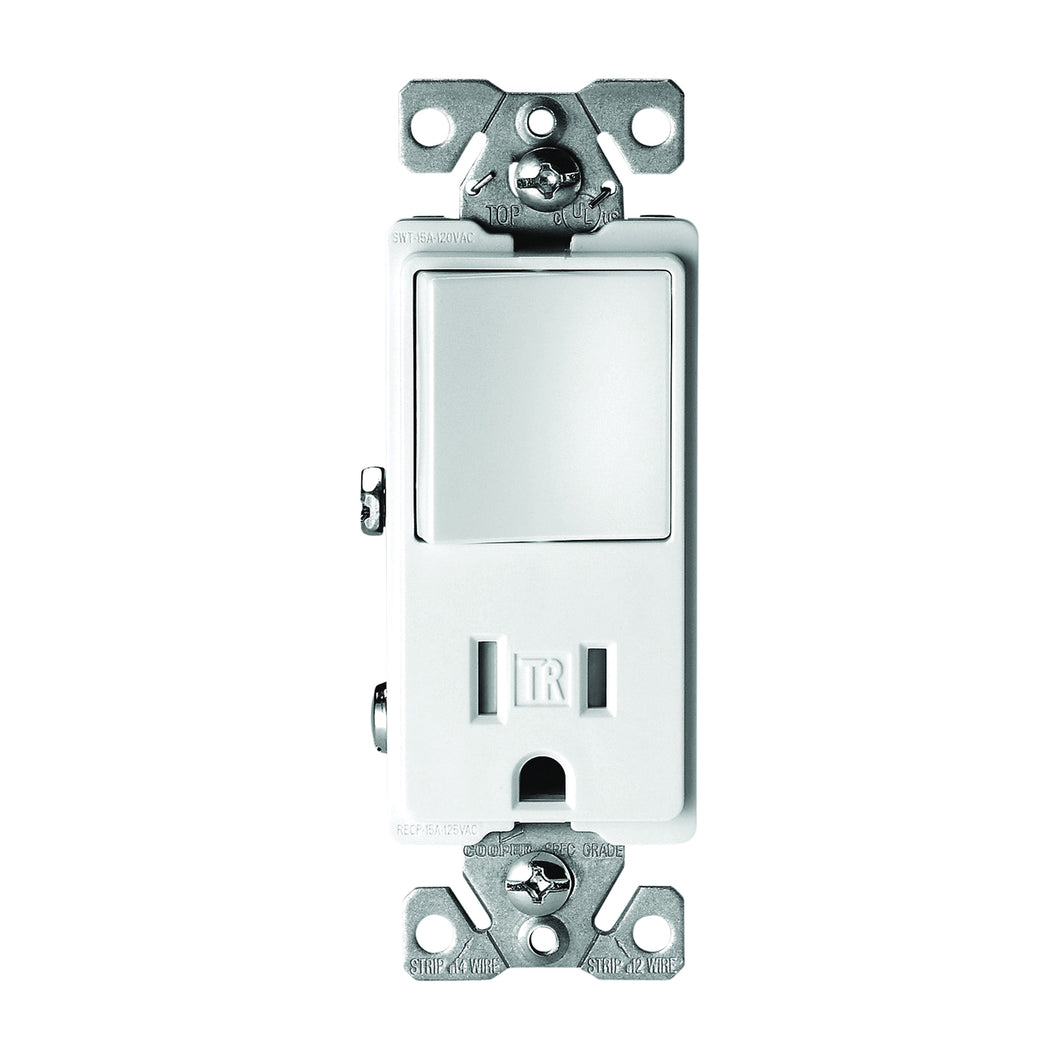

Eaton Cooper Wiring TR7730W Combination Switch/Receptacle, 1 -Pole, 15 A, 120/277 V, White

Eaton Cooper Wiring TR7730W Combination Switch/Receptacle, 1 -Pole, 15 A, 120/277 V, White

SKU: 9647827

Brand: Eaton Cooper Wiring

Regular price
Sale price
Regular price
Sold out
Unit price
In stock for FREE pickup in Whitinsville

Decorator heavy-duty-grade combination device features 15 A 120 V switch and tamper-resistant 15 A receptacle. Features UL listed tamper-resistant shutters designed to prevent the insertion of foreign objects. TR7730 switch is horsepower-rated for motor loads per UL 20. Thermoplastic rocker, top and backbody are virtually unbreakable to deliver years of durable performance. Ultrasonic welding and integrated construction of the strap and body provide excellent ground integrity even under heavy use. Durable, injection molded housings and PVC resin comply with UL94 V0 flammability ratings. Tri-combo screw heads offer greater installation flexibility.

Product Details

Manufacturer: EATON

Manufacturer's Part Number: TR7730W

Show me more Outlet & Switch Combos

Product Features

  • Convenient patented built-in wire stripper speeds installation
  • Steel mounting strap is zinc-plated for added corrosion resistance
  • Terminal screws are backed out and ready for wiring to enhance ease of installation
  • Break-off provision for wiring both devices on the same circuit or on separate circuits
  • Back wire clamps on side terminals provide for easy installation of #12 and #14 AWG wire
  • Triple-wipe blade contacts and double-wipe ground contacts to insure long-term plug retention
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used

Product Specifications

Color White
Current Rating 15 A
Dielectric Strength 1500 V
Dimensions 1.08 in D x 4.19 in H
Material Thermoplastic
Mounting Type Flush
Number of Poles 1
Operating Temperature -20 to 60 deg C
Terminal Type Screw
Type Heavy-Duty
Voltage Rating 120/277 V
Wire Size 14 to 12 AWG
Wiring Type Back and Side
