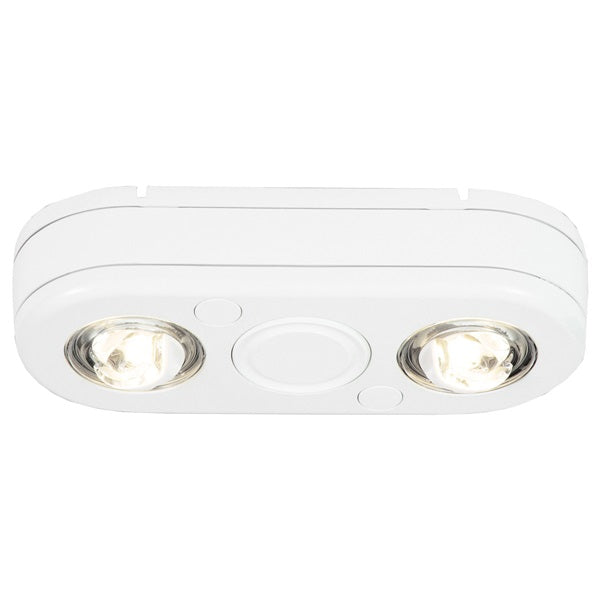

The patents pending REVOLVE™ LED outdoor security Series by ALLPRO™ combines advanced LED technology and industry-leading optic design to bring you a low-profile luminaire with uncompromising performance. Adjustable, refractive optics eliminate the need for traditional arms and reflectors, while allowing for precision aiming and control, resulting in a sleek, aesthetically appealing LED luminaire that remains virtually unnoticeable when not in use. Multiple control options are available, including integral photo control for dusk-to-dawn operation and motion sensors with timing and sensitivity adjustments.
Product Details
Manufacturer: EATON
Manufacturer's Part Number: REV235FW
Show me more Flood & Security Lighting
Product Features
- Optics rotate 360 deg for fully adjustable area coverage
- Sleek, contoured design optimized for low profile applications
- Integral dusk to dawn sensor ensures lights only come on after dark
- Internal heat sinking design maximizes LED and driver performance for prolonged and maintenance-free operation
- Durable, die-cast aluminum housing formed to optimize thermal management while minimizing space requirements in covered ceiling and eave mount applications
- Adjustable mounting bracket allows for 315 deg range of adjustment after installation or mounting bracket can be locked prior to installation if no adjustment is desired
Product Specifications
| Average Life | 50,000 hr |
| Color Rendering Index (CRI) | 74 |
| Color Temperature | 3500 K |
| Detection Range | 70 ft |
| Dimensions | 5.1 in L x 11.8 in W x 2.8 in H |
| Fixture Material | Aluminum |
| Includes | Optic Rotator Tool |
| Lamp Type | LED |
| Lumens | 2150 Lumens |
| Mounting Type | Eave, Wall |
| Voltage Rating | 120 V |
| Wattage Rating | 26.7 W |
Product Documents
| Catalog | Click here to download |
| Specification Sheet | Click here to download |
