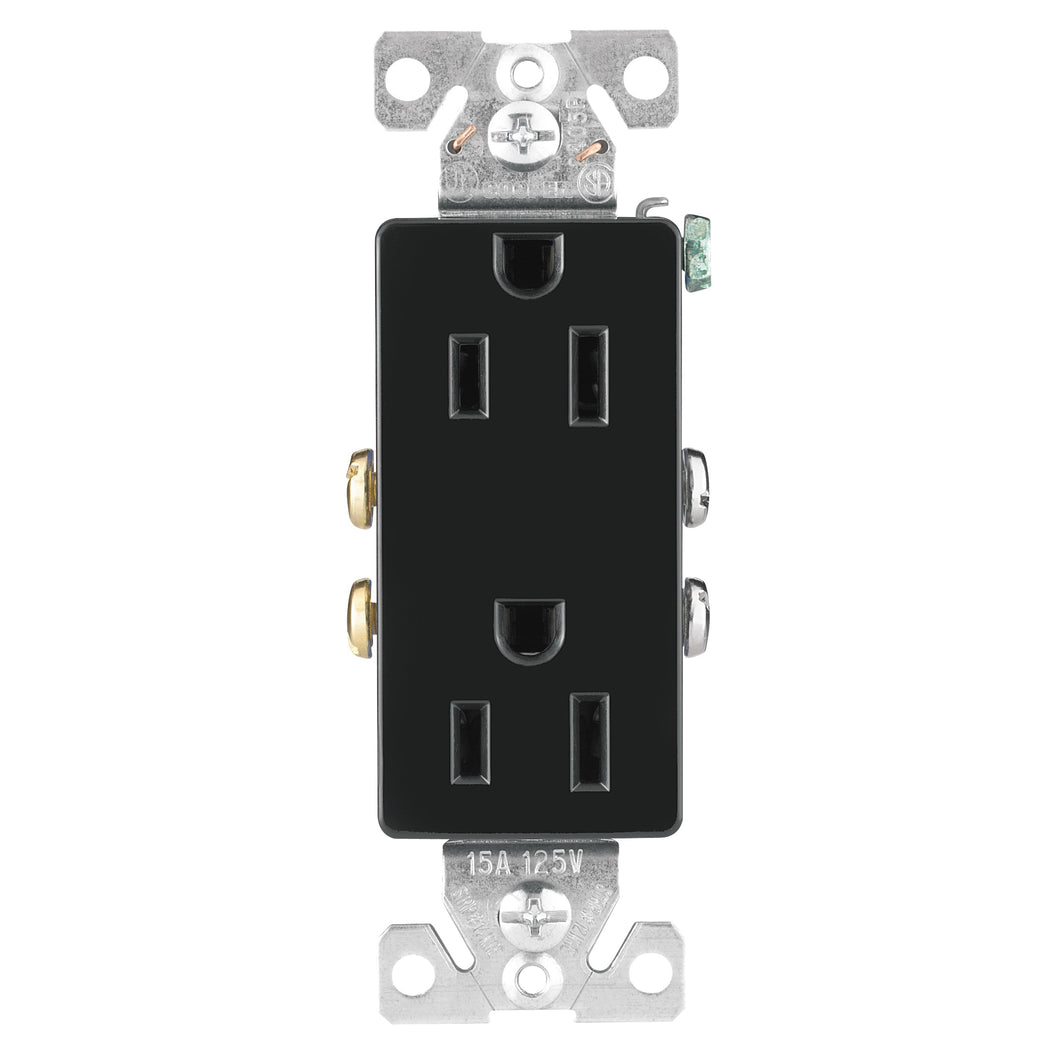

Decorator Receptacles with autoground feature longer, wider straps providing 40% more contact area to wall board. Virtually eliminates floating installations. Patented built-in wire stripper for #14 and #12 wire to speed installation. Patented built-in wire looper for pre-looping. Tri-combo screws accept slotted, Phillips and Robertson-head tools for installation flexibility. Terminal screws backed out - ready for wiring. Side wire terminals accept up to #10 solid or stranded wire. Push-in terminals accept #14 solid wire.
Product Details
Manufacturer: EATON
Manufacturer's Part Number: 1107-9BK-BOX
Show me more Duplex Outlets
Product Features
- Easy access split circuit break-off tab
- Terminal screws backed out ready for wiring
- Patented built-in wire looper for pre-looping
- Side wire terminals accept up to #10 AWG solid wire
- Double-wipe ground contacts ensure long-term ground retention
- Longer, wider strap provides 40% more contact area to wallboard
- Push-in terminals accept #14 AWG solid wire for quick installation
- High impact-resistant thermoplastic face and back body eliminates breakage
- Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
- Tri-combo screws accept Slotted, Phillips and Robertson head tools for installation flexibility
- Tamper-resistant receptacle provide compliance with 2017 NEC Article 406.12 that states that all 15 A and 20 A
Product Specifications
| Color | Black |
| Current Rating | 15 A |
| Dimensions | 4.2 in L x 1.29 in W x 0.69 in D |
| Frequency Rating | 60 Hz |
| Material | PVC |
| Mounting Type | Wall |
| NEMA Configuration | 5-15R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Operating Temperature | -20 to 60 deg C |
| Voltage Rating | 125 V |
| Wire Size | 14 to 10 AWG |
| Wiring Type | Back, Side |
