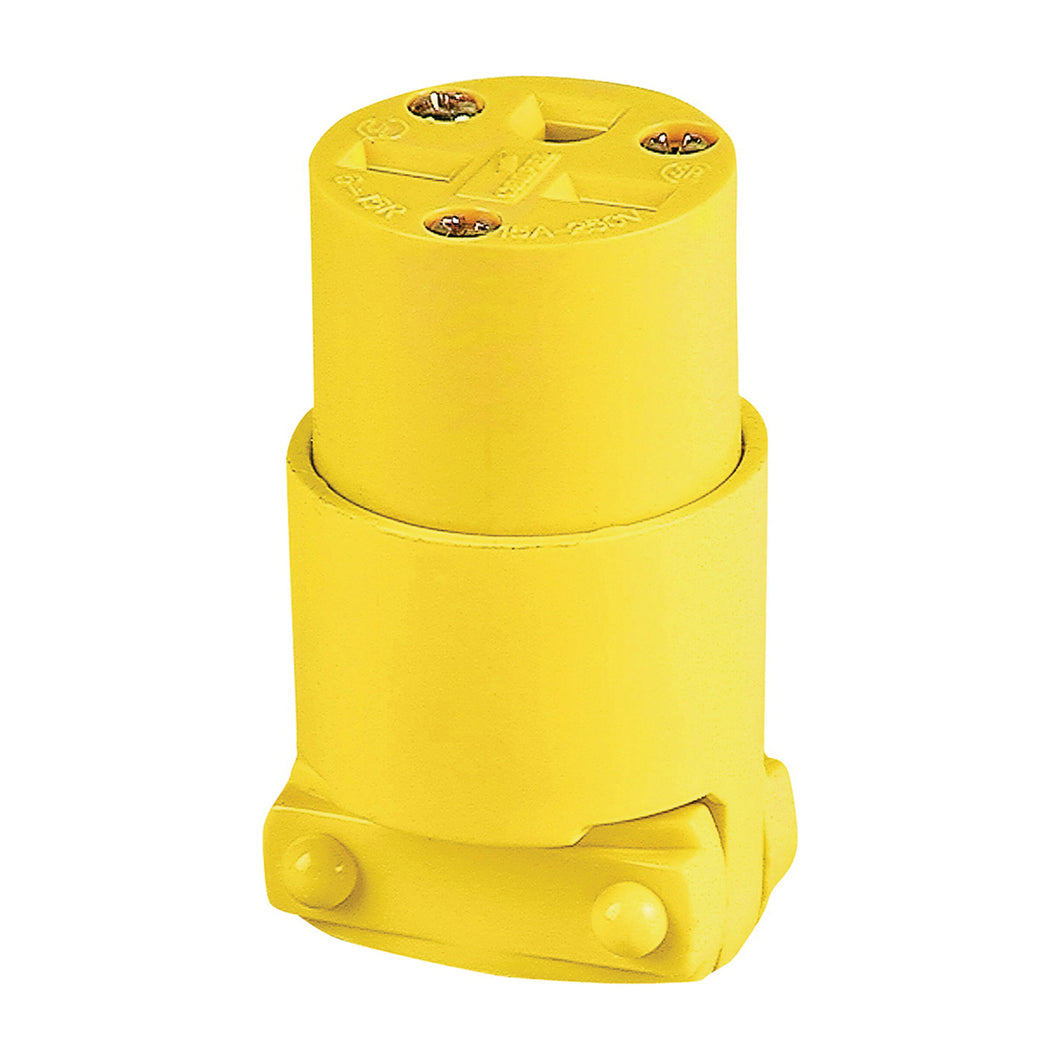

Terminals in individual chambers to positively insulate conductors. Terminal screw clamps are designed to contain wire and prevent binding. Terminal screws backed out, ready for wiring. Nylon Kwiklok features patented twist-actuated internal cord clamp, reduces installation time. Meets all UL 498 requirements. Yellow color.
Product Details
Manufacturer: EATON
Manufacturer's Part Number: 4227-BOX
Show me more Plugs & Connectors
Product Features
- Terminal screws backed out ready for wiring
- Terminals in individual chambers to positively insulate conductors
- Terminal screw clamps are designed to contain wire and prevent binding
- Vinyl plugs and connectors resist chemical attack and are less brittle in extremely low temperatures
- Combination Slotted/Phillips head mounting and terminal screws ease installation with power screwdrivers
Product Specifications
| Cable/Wire Size | 1/4 to 21/32 in |
| Color | Yellow |
| Current Rating | 15 A |
| Dimensions | 2.61 in L x 1.35 in W |
| Grounding Type | Grounded |
| Material | Thermoplastic/Vinyl |
| NEMA Configuration | NEMA 6-15 |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Operating Temperature | -20 to 60 deg C |
| Type | Straight Body |
| Voltage Rating | 250 V |
