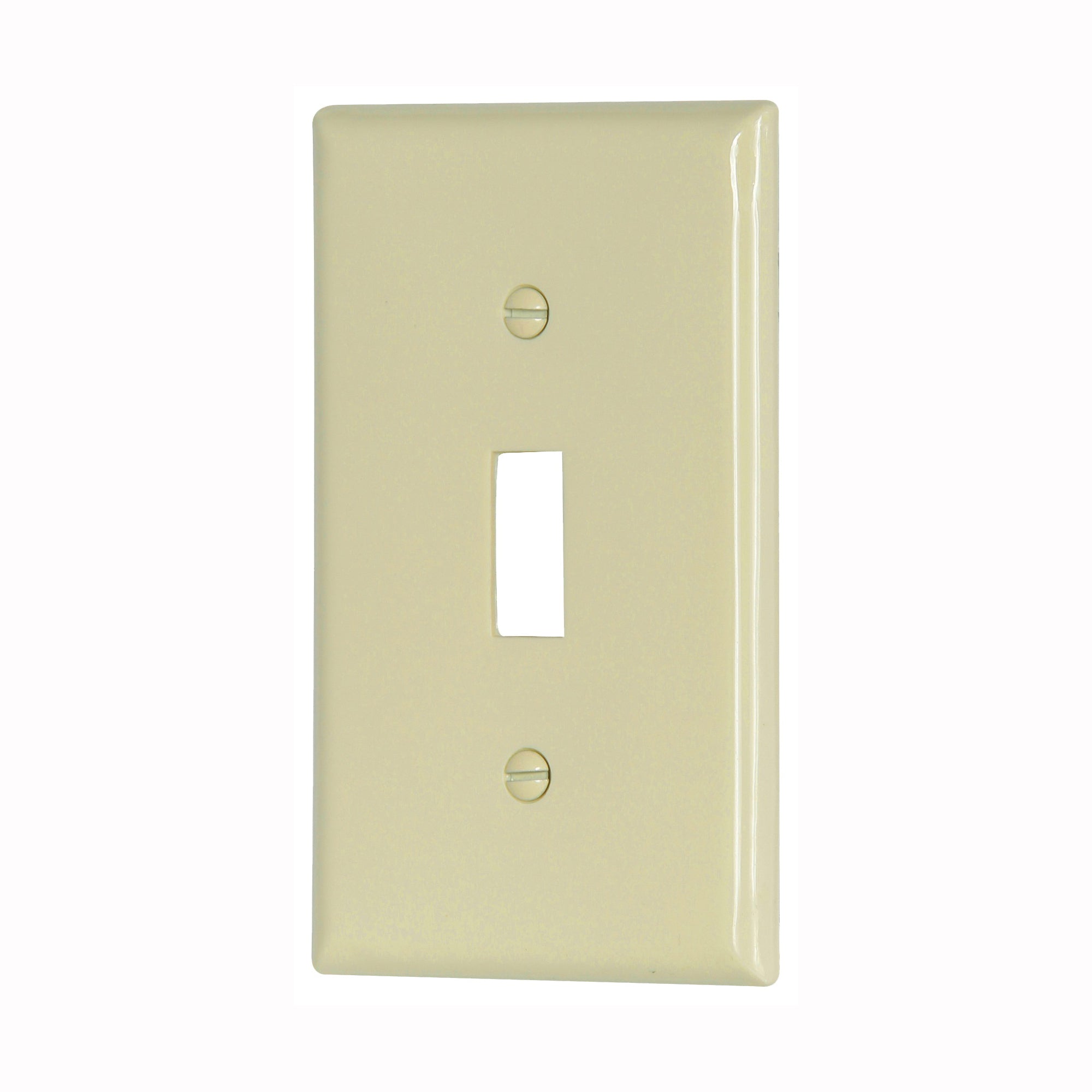

Molded from non-flammable nylon. Flush-fitting, warp-resistant design. Screw-catch feature holds mounting screws captive and simplifies installation. Matching screws provided. High gloss finish is soil resistant. Plate size: 4.50 x 2.75 in.
Product Details
Manufacturer: EATON
Manufacturer's Part Number: 5134LA
Show me more Switch Wallplates
Product Features
- High-gloss finish is soil-resistant
- Nylon wallplates have a flush fitting, warp-resistant design
- Exclusive time saving screw-catch feature holds mounting screws captive and simplifies installation
- Rugged construction reduces installation cost due to less plate breakage and resists bowing to provide a smooth, flat installation
- Polycarbonate wallplates are virtually unbreakable with high structural rigidity, long-term form retention, plus great impact and abrasion resistance
Product Specifications
| Color | Light Almond |
| Finish | High-Gloss |
| First Gang to Edge | 1-3/8 in |
| Flammability Rating | UL94 |
| Includes | Matching Screws |
| Length | 4-1/2 in |
| Material | Nylon |
| Mounting Type | Screw |
| Number of Gangs | 1 |
| Operating Temperature | -40 to 70 deg C |
| Suitable for | Toggle Switch |
| Thickness | 1/16 in |
| Type | Standard-Size |
| Width | 2-3/4 in |
Product Documents
| Catalog | Click here to download |
