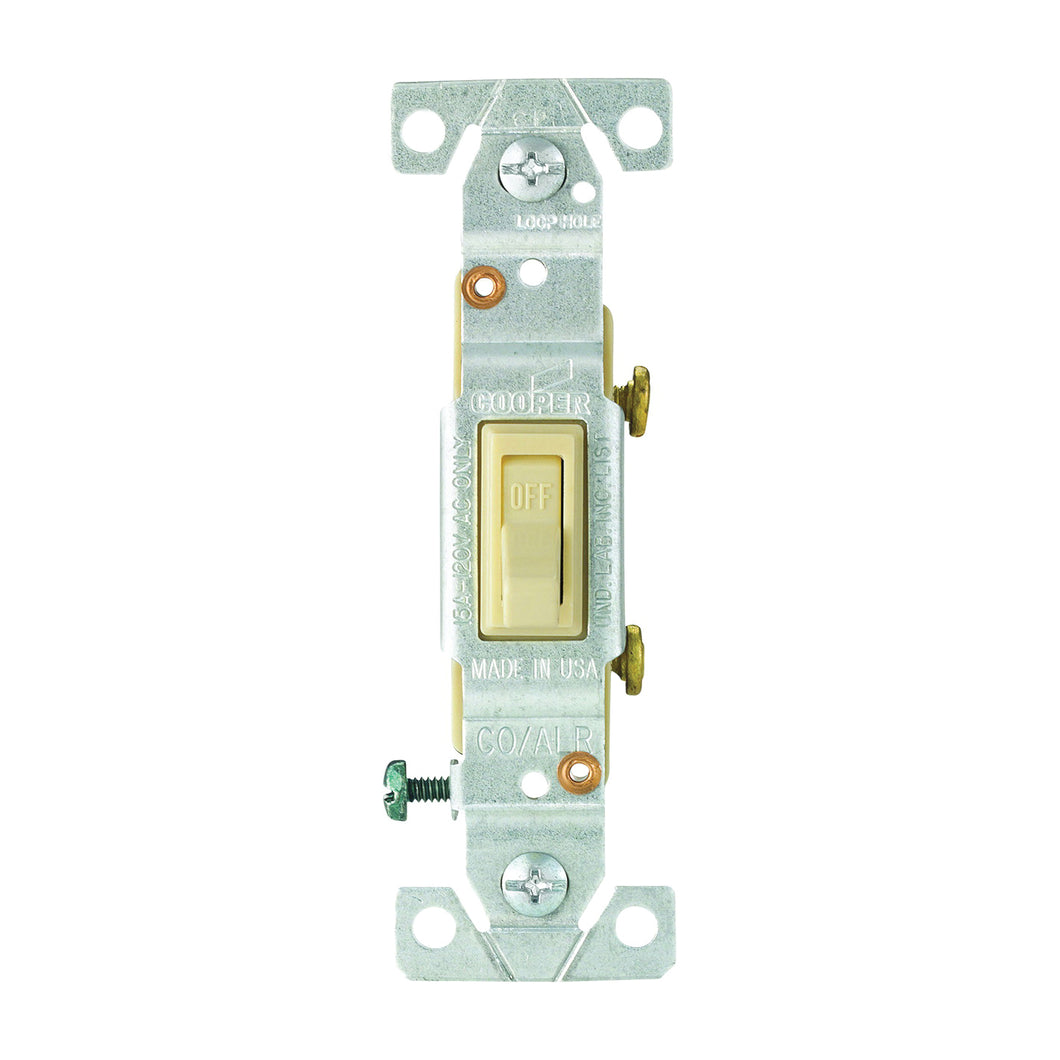

For direct connection to aluminum or copper wire. Longer, wider strap provides 40% more contact area to wall board. Virtually eliminates floating installations. Industrial design cam action mechanism insures quiet switch action. Side wire terminals accept up to #10 solid or stranded wire. Terminal screws are backed out-ready for wiring. Combination slot/Phillips head mounting and terminal screws. 15 A, 120 V. UL listed.
Product Details
Manufacturer: EATON
Manufacturer's Part Number: 5221V-7V-BU
Show me more Toggle Switches
Product Features
- Terminal screws backed out, ready for wiring
- For direct connection to aluminum or copper wire
- Industrial design cam action mechanism ensures quiet switch action
- Long, broad mounting strap virtually eliminates floating installations
- Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
- Combination slot/Phillip's head mounting and terminal screws ease installation
- Side wire terminals accept up to #10 AWG solid copper wire and up to #10 AWG solid aluminum wire
Product Specifications
| Actuator Type | Cam |
| Color | Ivory |
| Current Rating | 15 A |
| Mounting Type | Wall |
| Number of Poles | 1 |
| Temperature Rating | -40 to 65 deg C |
| Terminal Type | Screw |
| Voltage Rating | 120 V |
| Wattage Rating | 0.5 hp |
