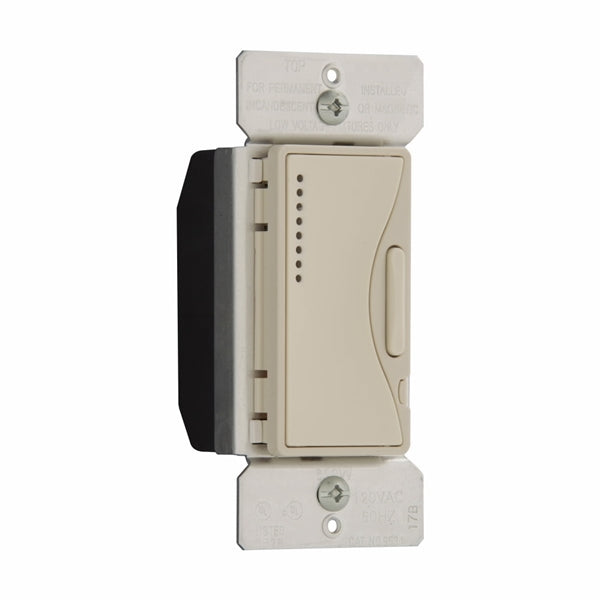

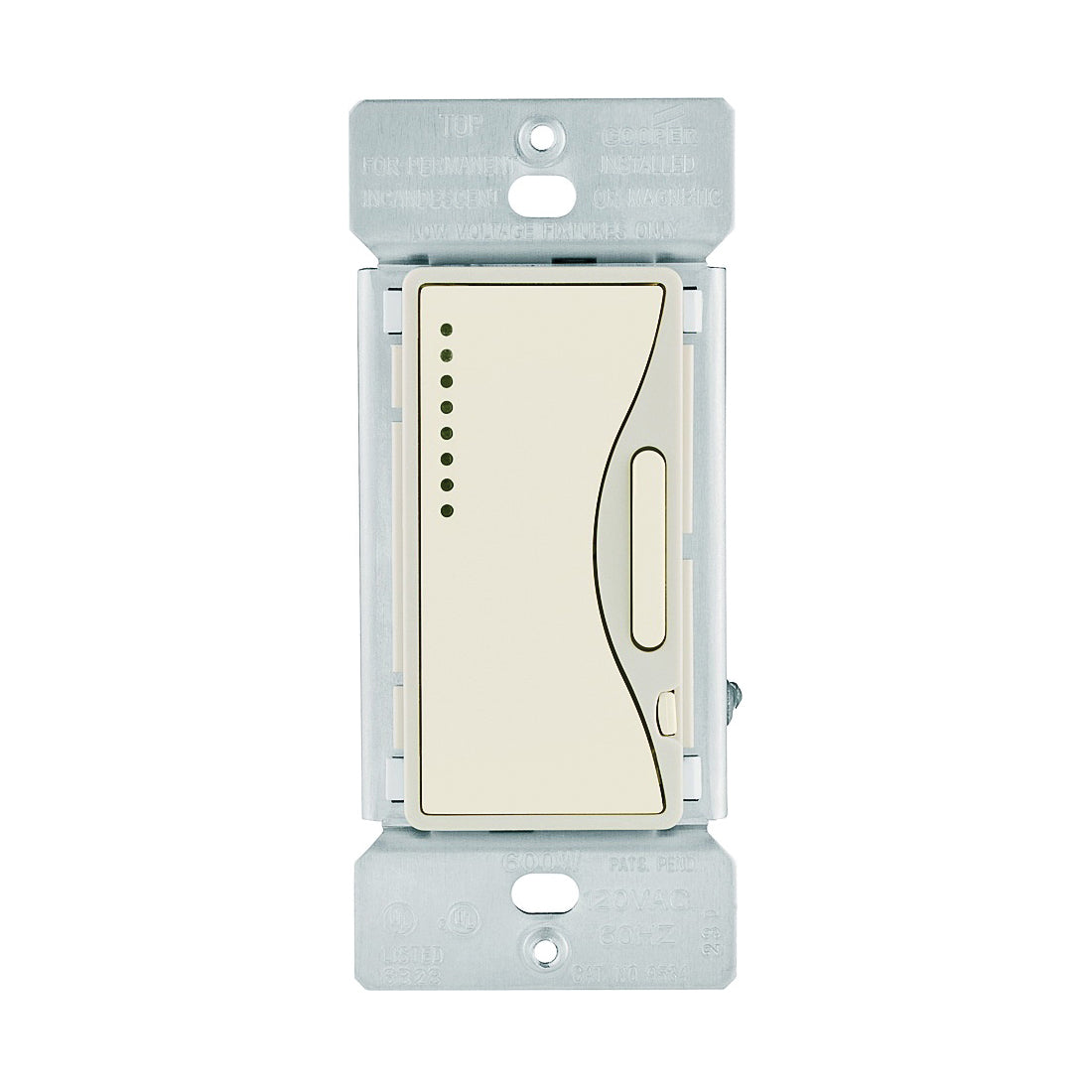

The ultimate in controlling light, compatible with both incandescent and magnetic low-voltage lighting. Features such modes of operation as rapid and delayed fading, LED light-level display for presetting illumination levels and master/remote units for multi-point control. cUL Listed, meets all UL 1472 requirements (file no. E47967), CSA 10016 (file no. 6241-01) as required, NOM certified. Flammability rating V2 per UL 94. Temperature rating of 0 to 35 deg C. 600 W maximum.
Product Details
Manufacturer: EATON
Manufacturer's Part Number: 9534DS
Show me more Dimmers
Product Features
- Durable top and backbody for long reliable performance
- Adjustable low-end and high-end trimming to prevent lamp flickering
- Illumination level may be adjusted with switch in On or Off position
- Electro-mechanical push pad for On/Off operation with separate dim/bright bar
- Master controls as many as 5 accessory units for multiple location installations
- Preset feature allows user to return to previous light setting when turning lights on
- 10 secs delayed-off feature by pressing and holding push pad for 2 secs when dimmer is on
- Pressing and holding push pad for 2 secs when dimmer is off brings light to full brightness
- Seven step green LED display alongside push pad indicates selected light level and reduces brightness when off
- LED light level display for presetting illumination levels and master or accessory units for multi-location control
Product Specifications
| Color | Desert Sand |
| Control Type | ON/OFF Push Pad |
| Dimensions | 2.38 in L x 2.38 in W x 5.38 in H |
| Frequency Rating | 60 Hz |
| Lamp Type | Halogen, Incandescent |
| Material | Polycarbonate |
| Mounting Type | Flush |
| Number of Phases | 1 |
| Number of Poles | 1 |
| Operation Modes | 3-Way |
| Start Type | Rapid, Preset |
| Temperature Rating | 0 to 40 deg C |
| Terminal Type | Lead Wire |
| Voltage Rating | 120 V |
| Wattage Rating | 600 W |
