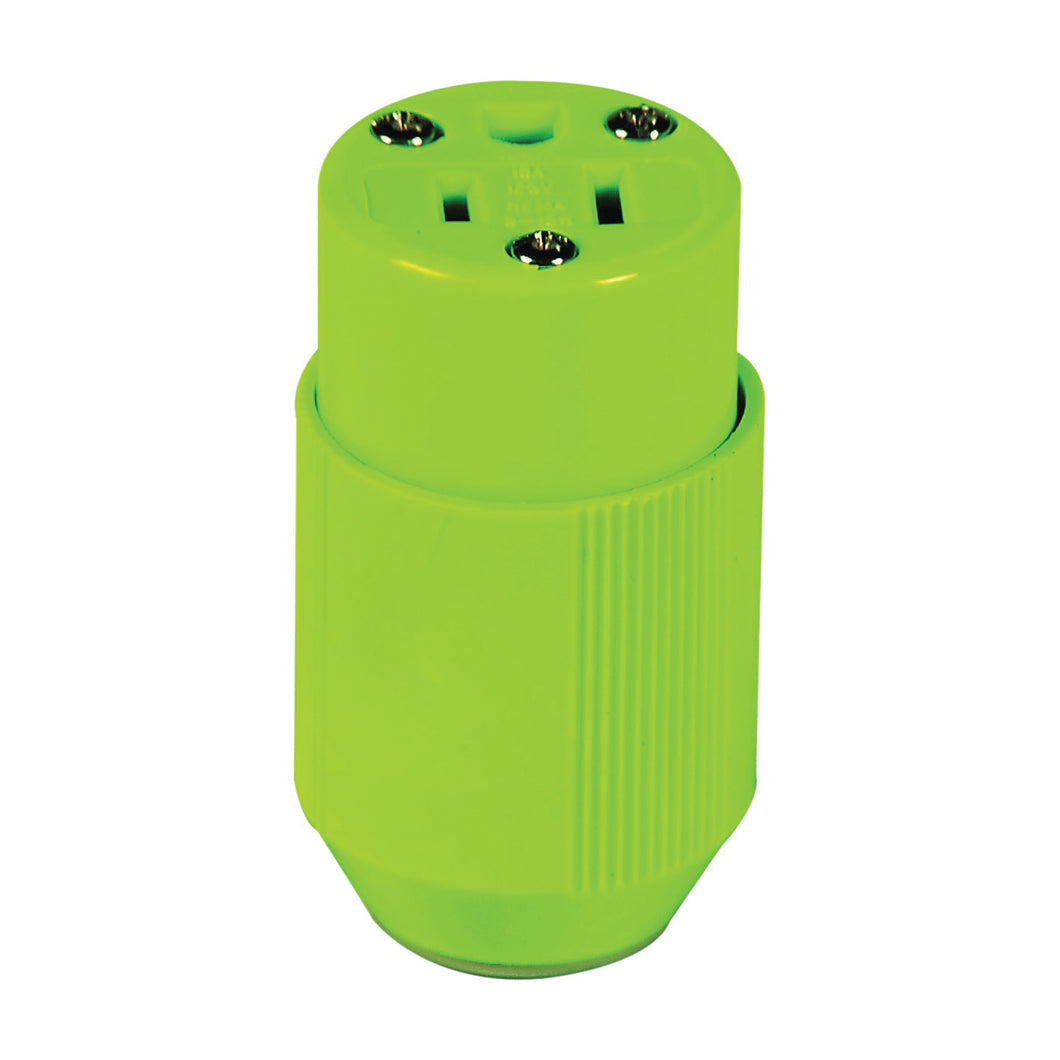

Highly visible and easy to locate at the job sight. Molded out of impact-and chemical-resistant nylon. Neoprene gasket seals cord opening to protect against moisture, dirt, wood chips and more. Temperature rating of -40 to 75 deg C. 15 A. UL 498 listed (file #E15012), CSA Certified C22.2 #42 (file #2081) (6221-02) NOM Certified. NEMA 5-15. Carded.
Product Details
Manufacturer: EATON
Manufacturer's Part Number: BP3487-4GN
Show me more Plugs & Connectors
Product Features
- Terminal screws backed out ready for wiring
- Solid brass plug blades are firmly embedded in body
- Terminal screw clamps are designed to contain wire and prevent binding
- High visibility products for quick location and identification of plugs in the middle of a job site
- Combination Slotted/Phillips head mounting and terminal screws ease installation with power screwdrivers
- High visibility product contains neoprene dust cover which prevents dust from entering the plug or connector at the cable entrance
Product Specifications
| Cable/Wire Size | 1/4 to 21/32 in |
| Color | Fluorescent Green |
| Current Rating | 15 A |
| Dimensions | 1.83 in L x 1.38 in W |
| Grounding Type | Grounded |
| Material | Nylon |
| NEMA Configuration | NEMA 5-15R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Operating Temperature | -40 to 75 deg C |
| Type | High-Visibility, Straight |
| Voltage Rating | 125 V |
