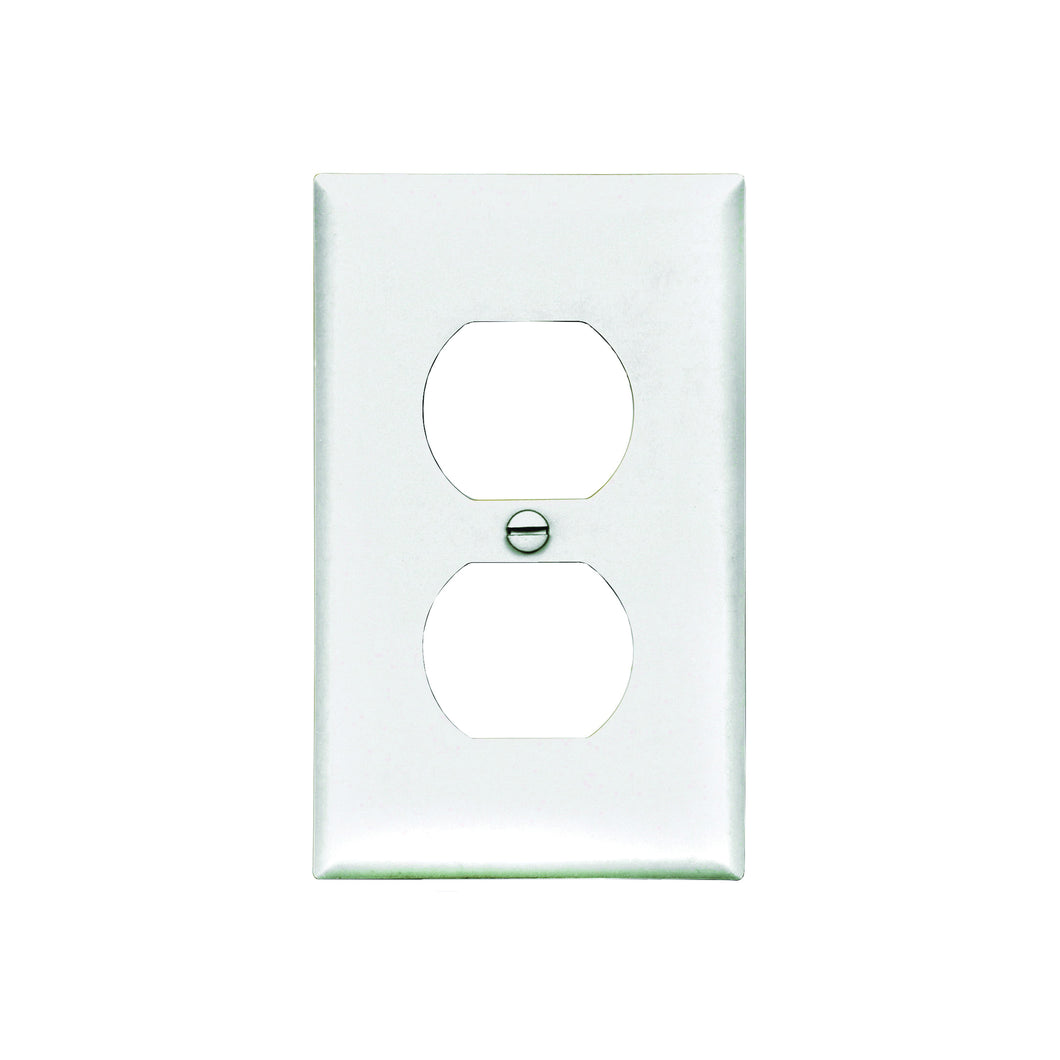

Molded from non-flammable nylon. Flush fitting, warp-resistant design. Screw-catch feature holds mounting screws captive and simplifies installation. Matching screws provided. High-gloss finish is soil resistant. Standard-size - 2-3/4 in x 4-1/2 in.
Product Details
Manufacturer: EATON
Manufacturer's Part Number: BP5132W
Show me more Outlet Wallplates
Product Features
- High-gloss finish is soil resistant
- Nylon wallplates have a flush-fitting, warp-resistant design
- Exclusive timesaving screw catch feature that holds mounting screws captive and simplifies installation
- Nylon duplex receptacle rugged construction reduces installation cost due to less plate breakage and resists bowing to provide a smooth, flat installation
Product Specifications
| Color | White |
| Finish | High-Gloss |
| First Gang to Edge | 1.37 in |
| Includes | Matching Screws |
| Length | 4-1/2 in |
| Material | Nylon |
| Mounting Type | Flush |
| Number of Gangs | 1 |
| Operating Temperature | -40 to 70 deg C |
| Suitable for | Duplex Receptacle |
| Thickness | 0.06 in |
| Type | Standard-Size |
| Width | 2-3/4 in |
Product Documents
| Specification Sheet | Click here to download |
