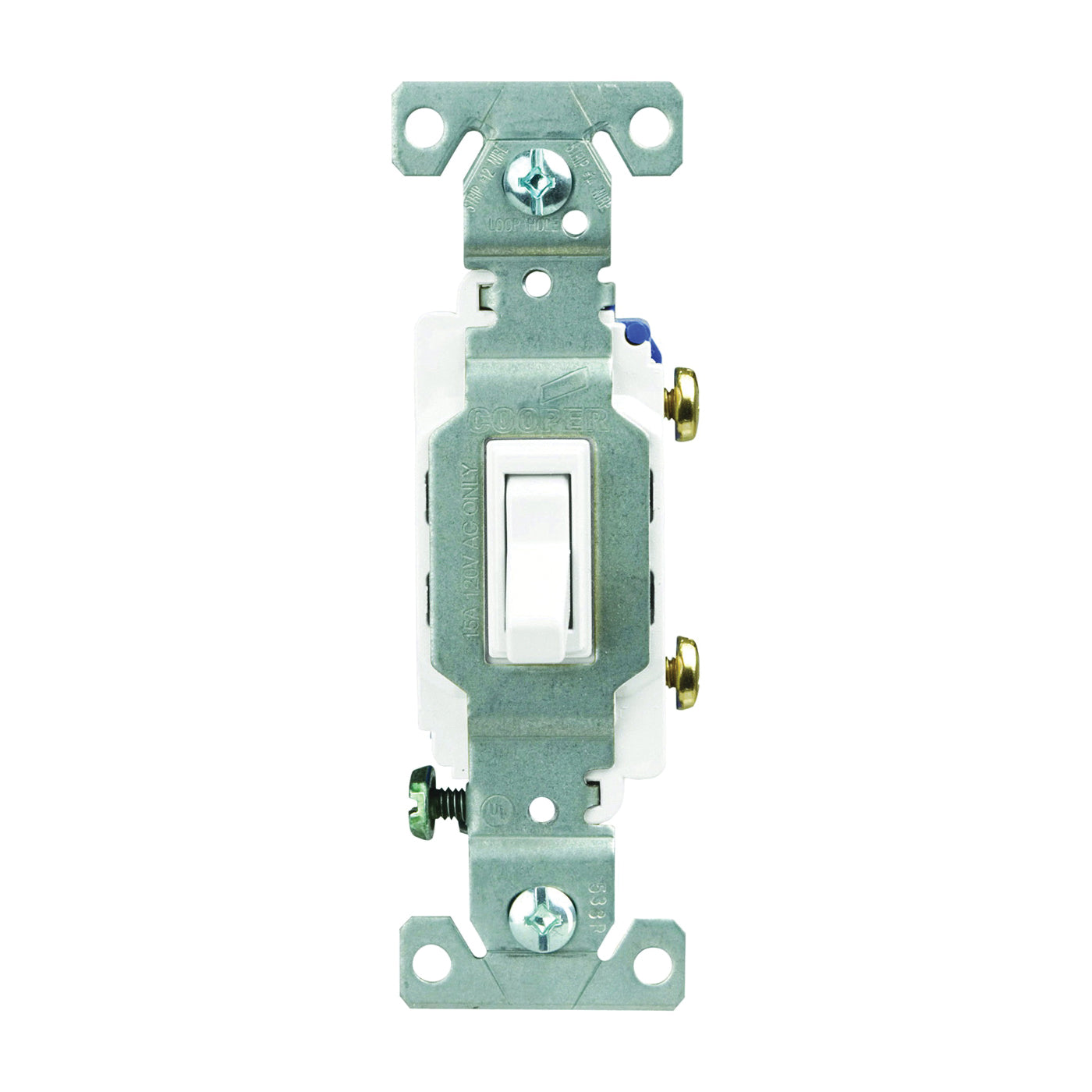

Longer, wider strap on toggle lighted switches provides 40% more contact area to wall board. Virtually eliminates floating installations. Industrial design cam action mechanism insures quiet switch action. Patented built-in wire stripper for #14 and #12 wire to speed installation. Unbreakable top and bottom housing eliminates call backs due to job site breakage. Patented built-in wire looper for pre-looping. Push-in terminals accept #14 solid wire only. Side wire terminals accept up to #10 solid or stranded wire.
Product Details
Manufacturer: EATON
Manufacturer's Part Number: C1301-7LTW
Show me more Toggle Switches
Product Features
- Lighted toggle glows in "OFF" position
- Push-in terminals accept #14 AWG solid wire only
- Side wire terminals accept up to #10 AWG solid wire
- Long, broad mounting strap virtually eliminates floating installations
- Tri-combo screws accept slotted, Phillip's and Robertson-head tools for installation flexibility
Product Specifications
| Actuator Type | Cam |
| Color | White |
| Current Rating | 15 A |
| Dielectric Strength | 1500 V |
| Dimensions | 4.2 in L x 1.3 in W x 0.88 in D |
| Housing Material | Polycarbonate |
| Mounting Type | Wall |
| Number of Poles | 1 |
| Temperature Rating | -20 to 60 deg C |
| Voltage Rating | 120 V |
| Wattage Rating | 0.5 hp |
Product Documents
| Specification Sheet | Click here to download |
