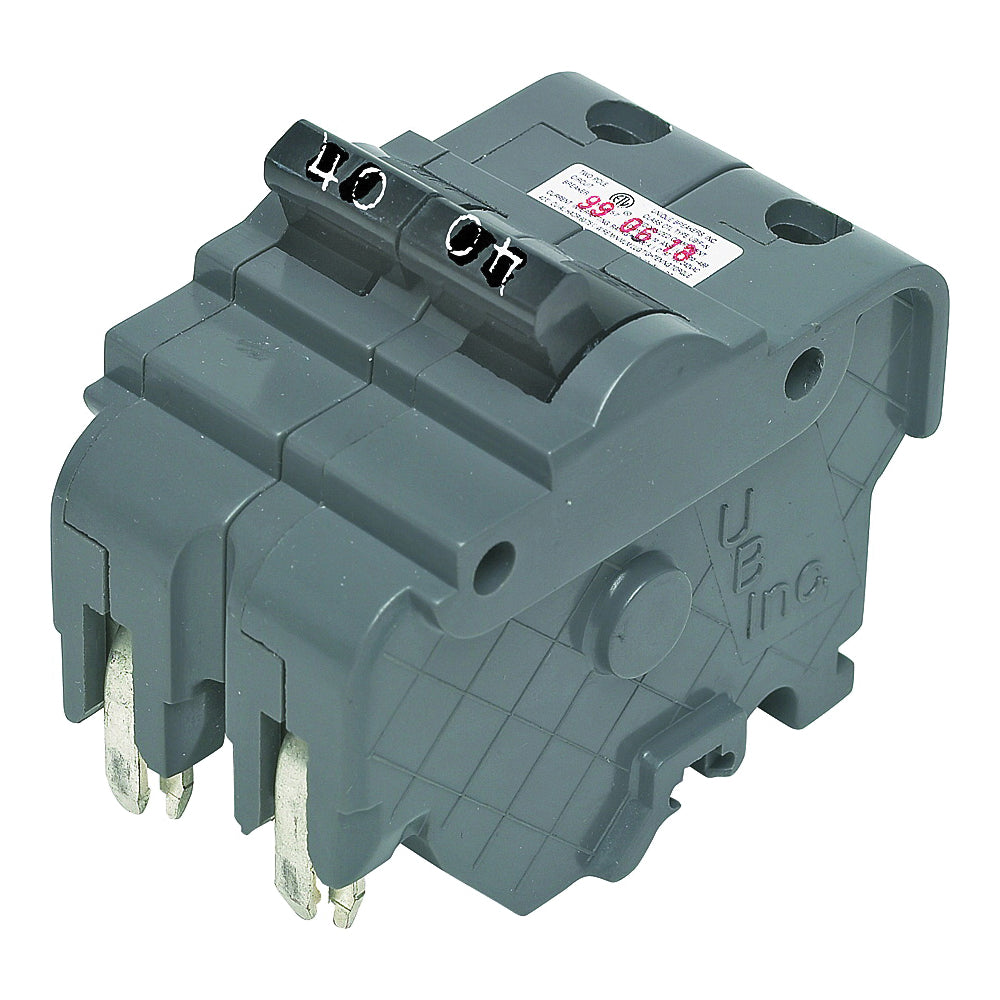

Replacement for Federal Pacific Load Centers. Single pole SWD rated, double pole is HACR rated. 120/240 VAC, 10,000 AIC.
Product Details
Manufacturer: CONNECTICUT ELECTRIC
Manufacturer's Part Number: UBIF240N
Show me more Circuit Breakers
Product Specifications
| Actuator Type | Magnetic, Thermal |
| Current Rating | 40 A |
| Dimensions | 3.36 in L x 2 in W x 2.55 H |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 2 |
| Operating Frequency | 50/60 Hz |
| Suitable for | Federal Pacific Electric load centers |
| Terminal Type | Lug |
| Type | Type NA |
| Voltage Rating | 120/240 V |
| Wire Size | 14 to 6 AWG |
