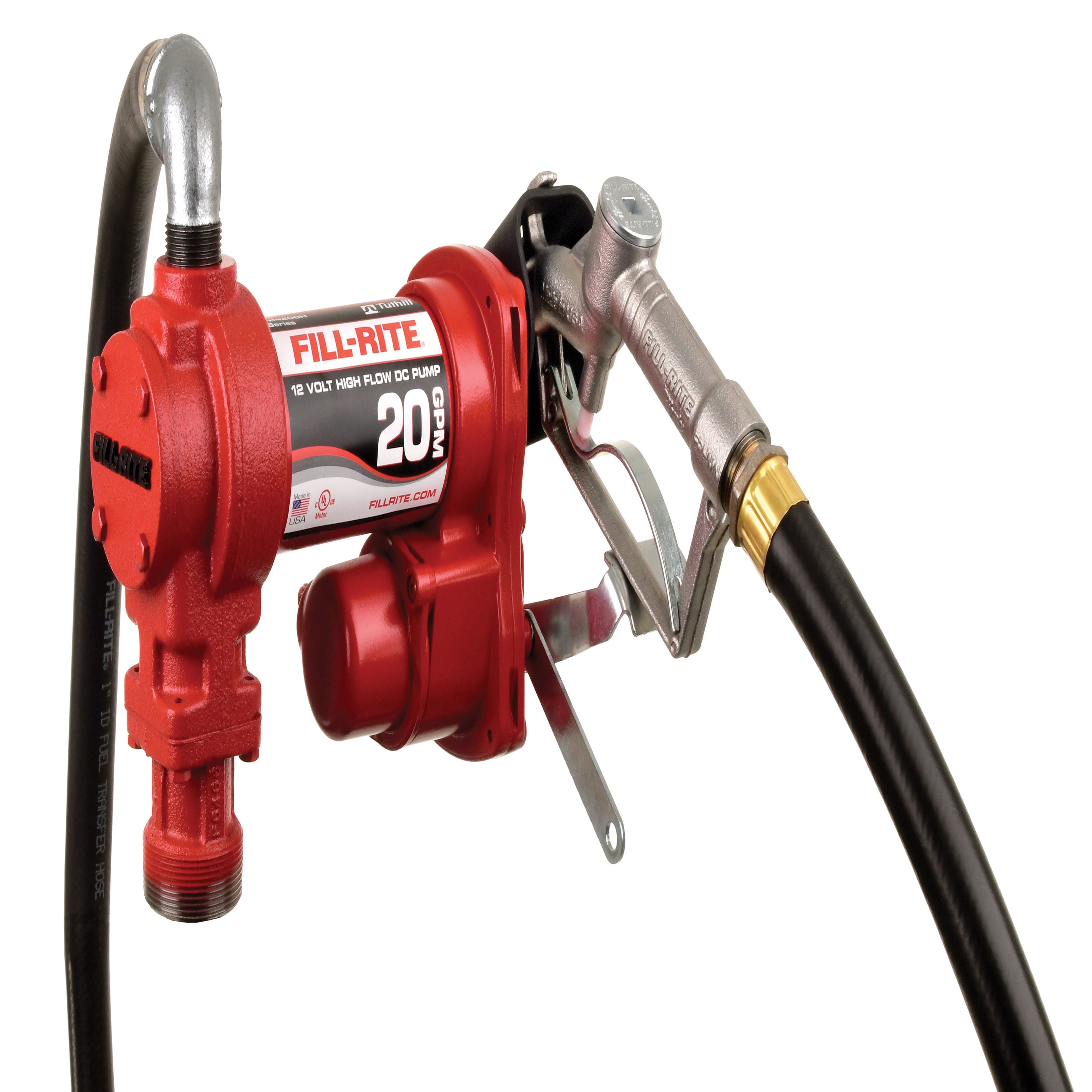

12 VDC, 20 gpm heavy-duty, cast-iron, rotary vane fuel transfer pump. Designed for gasoline, diesel, biodiesel up to B20, E15, kerosene and mineral spirits. Includes pump, 1 in manual nozzle, 1 in x 12 in hose with static ground wire, 18 ft battery cable and 20 in to 34 in steel telescoping suction pipe. UL/cUL, ATEX, CE motor.
Product Details
Manufacturer: TUTHILL
Manufacturer's Part Number: FR4210G/FR4210D
Show me more Fluid Transfer Pumps
Product Features
- 25% higher flow
- Replaces FR4210D
- Great emergency response pump
- 2 in threaded base for tank mounting
- Cast bronze rotor with bronze rotary vanes
Product Specifications
| Designated Fluid | Biodiesel, Diesel, E15, Gasoline, Kerosene, Mineral Spirits |
| Flow Rate | 20 gpm |
| Includes | 1 in Manual Nozzle, 1 in x 12 in Hose with Static Ground Wire, 18 ft Battery Cable and 20 in to 34 in Steel Telescoping Suction Pipe, Pump |
| Inlet Connection Size | 1 in |
| Material | Iron |
| Motor Specifications | 1/4 hp, 12 VDC, 19 A, 30 min Duty Cycle |
| Nozzle Type | Manual |
| Outlet Connection Size | 1 in |
| Suction Tube Length | 20 to 34 in |
Product Documents
| Catalog | Click here to download |
