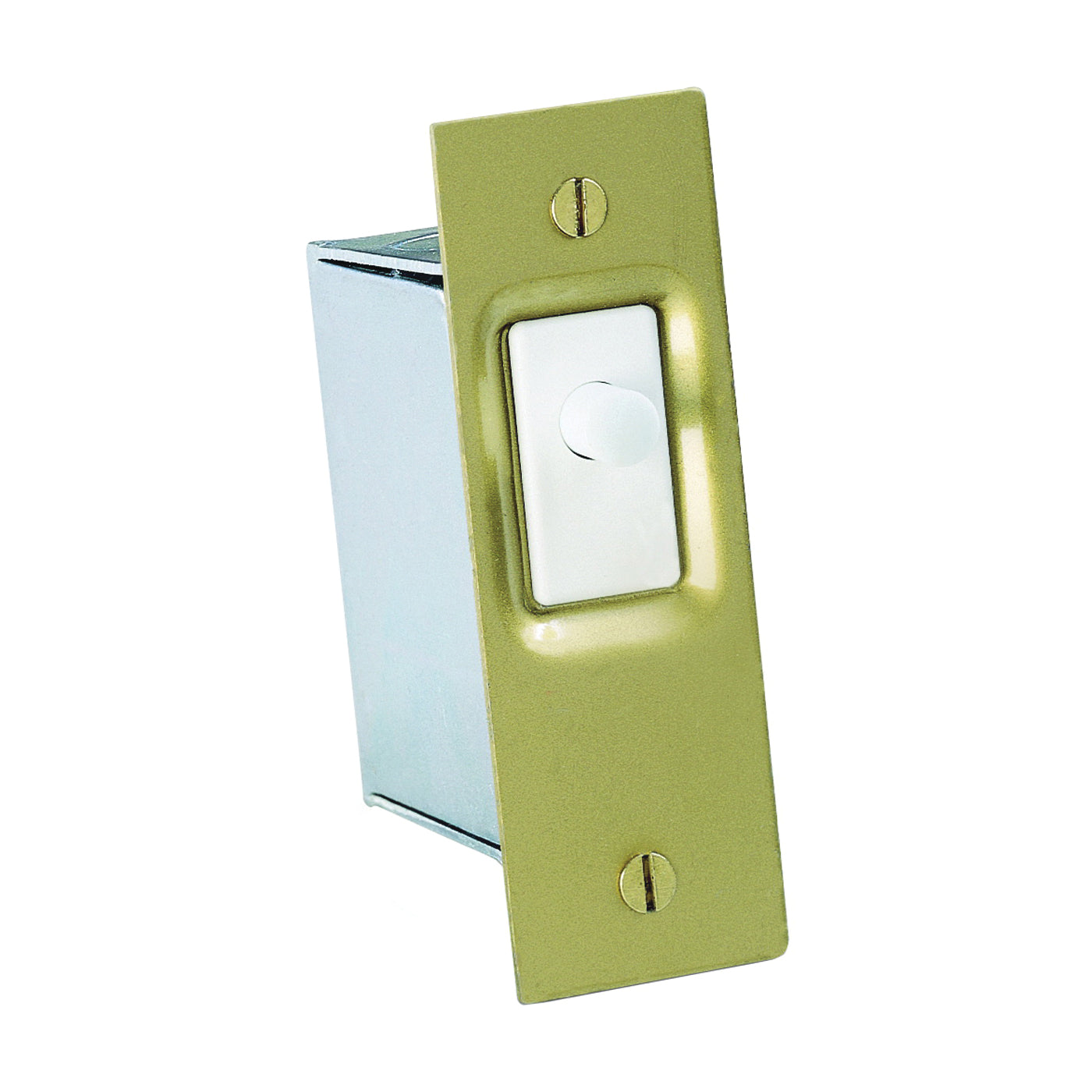

The 10-A push-button door switch features normally on-momentary contact. The switch includes a metal box, cover plate and mounting hardware for installation within a doorjamb with a 1-1/4 in wide x 2-3/4 in high x 2 in deep mounting hole. The 1-pole, single-throw circuitry automatically operates lights when door is opened.
Product Details
Manufacturer: GARDNER BENDER
Manufacturer's Part Number: GSW-SK
Show me more Push Button Switches
Product Features
- Use to control lighting with the opening and closing of a door
- Normally-on/momentary-off, SPST circuitry turns lights on when the door opens
- Install in a doorjamb with a 1-1/4 in wide x 2-3/4 in high x 2 in deep mounting hole
Product Specifications
| Color | Tan |
| Contact Configuration | SPST |
| Current Rating | 16/10 A |
| Dimensions | 2-13/32 in L x 1-1/4 in W x 4 in H |
| Includes | AC/DC Switch, Metal Box, Cover Plate and Mounting Hardware |
| Mounting Type | Wall |
| Number of Poles | 1 |
| Operating Temperature | -20 to 65 deg C |
| Voltage Rating | 125/277 V |
| Wattage Rating | 0.5 hp |
Product Documents
| Line Drawing | Click here to download |
