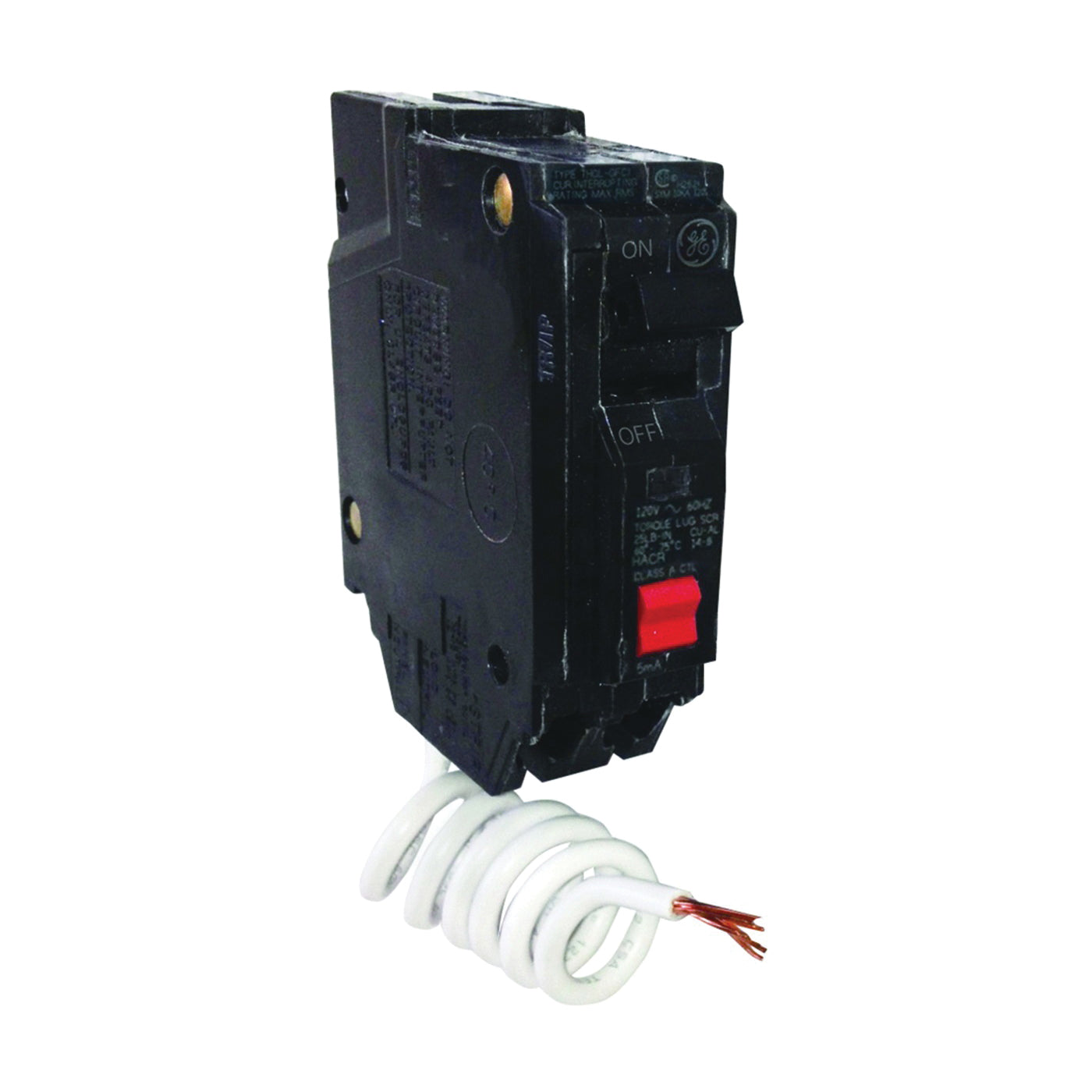

Tin-plated copper stab to create a reliable, permanent and corrosion-resistant connection. Ensures its ground circuitry is functioning properly by automatically running diagnostic testing on a periodic basis. Should a problem be detected, the circuit breaker will trip and will need to be replaced. Unit provides protection against overloads, short circuits and ground faults. Class A 5 mA ground fault circuit interrupter. Wire range is #14 - 8 AWG CU/#12 - 8 AWG AL. UL listed. 4-1/2 in H x 1-1/4 in W x 3 in D, 0.479 lb.
Product Details
Manufacturer: ABB
Manufacturer's Part Number: THQL1115GFTP
Show me more Circuit Breakers
Product Specifications
| Actuator Type | Quick-Make, Quick-Break |
| Current Rating | 15 A |
| Frame Type | Q-Line |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 1 |
| Operating Frequency | 50/60 Hz |
| Operating Temperature | 60 to 75 deg C |
| Suitable for | Reverse Feed |
| Terminal Type | Screw Clamp |
| Trip Type | Non-Interchangeable |
| Type | Thermal Magnetic |
| Voltage Rating | 120 V |
| Wire Size | 14 to 8, 12 to 8 AWG |
