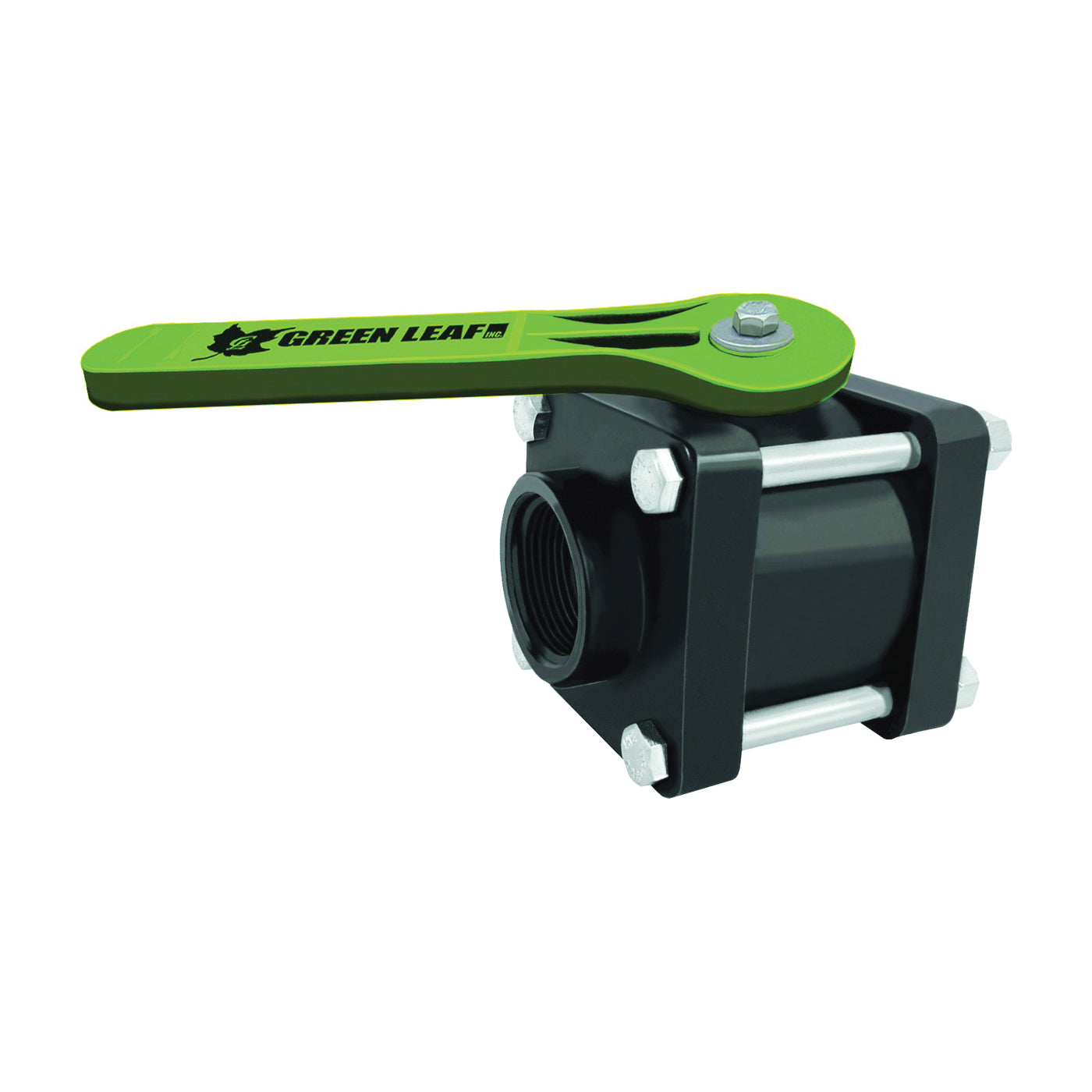

Used as a shut off for fluid flow applications, 1/4 in turn operation. Precision molded in polypropylene in the USA.
Product Details
Manufacturer: GREEN LEAF
Manufacturer's Part Number: V100FP/VX100FP
Show me more Shut-Off Valves
Product Features
- Precision molded in polypropylene
- The valve opens and closes with little pressure on the handle
- Polypropylene is reinforced with fiberglass for additional strength
- Teflon self-lubricating stem bushings and seats cannot stick or bind
- Self-aligning ball moves freely against the Teflon seats for smooth operation
- Stainless steel handles with ergonomic design and locking feature for added safety
- Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats
Product Specifications
| Actuator Type | Manual |
| Body Material | Polypropylene |
| Connection Size | 1 in |
| Connection Type | Female NPT |
| Dimensions | 4-1/4 in L x 3 in W x 3-5/8 in H |
| Handle Material | Stainless Steel |
| Media | Fluid |
| Number of Ports/Ways | 1 |
| Pressure Rating | 150 psi |
| Softgoods Material | FKM/PTFE |
| Temperature Rating | 70 deg F |
