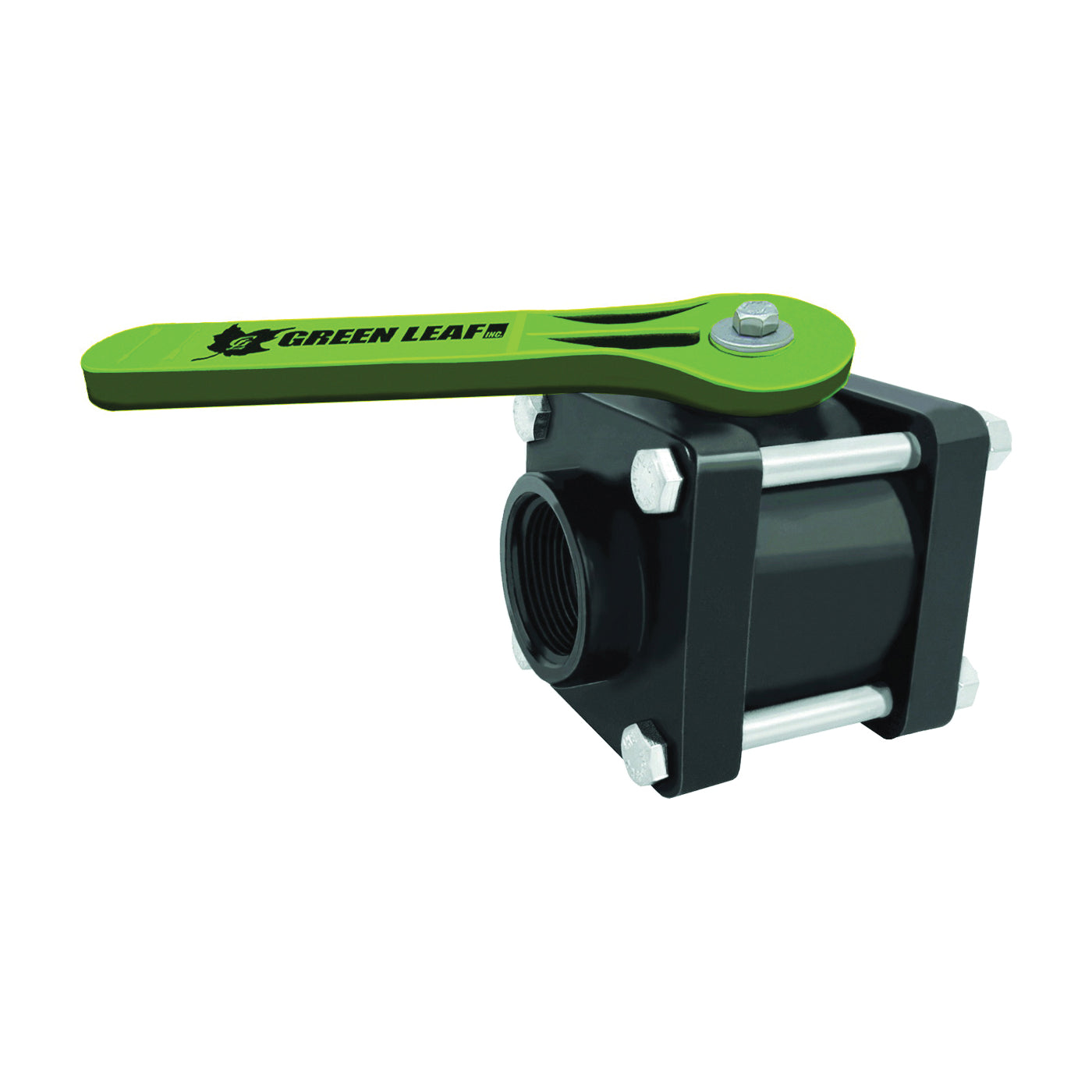

Used as a shut off for fluid flow applications, 1/4 in turn operation. Precision molded in polypropylene in the USA.
Product Details
Manufacturer: GREEN LEAF
Manufacturer's Part Number: V150FP
Show me more Shut-Off Valves
Product Features
- Precision molded in polypropylene
- All ball valves have 1/4 turn open and close
- The valve opens and closes with little pressure on the handle
- Polypropylene is reinforced with fiberglass for additional strength
- Teflon self-lubricating stem bushings and seats cannot stick or bind
- Self-aligning ball moves freely against the Teflon seats for smooth operation
- The ball is diamond turned after molding, making it spherically perfect which provides precise contact between the ball and seats
- The bolted ball valve has Viton seals for great chemical resistance and use stainless steel bolts and nuts making them corrosion-resistant
- All ball valves are made from high strength custom blended glass filled polypropylene with Teflon seats and stem bushings for smooth operation
Product Specifications
| Actuator Type | Manual |
| Body Material | Polypropylene |
| Connection Size | 1-1/2 in |
| Connection Type | Female NPT |
| Dimensions | 4-3/4 in L x 3-5/8 in W x 4-3/8 in H |
| Handle Material | Stainless Steel |
| Media | Fluid |
| Number of Ports/Ways | 1 |
| Pressure Rating | 150 psi |
| Softgoods Material | FKM/PTFE |
| Temperature Rating | 70 deg F |
Product Documents
| Catalog | Click here to download |
