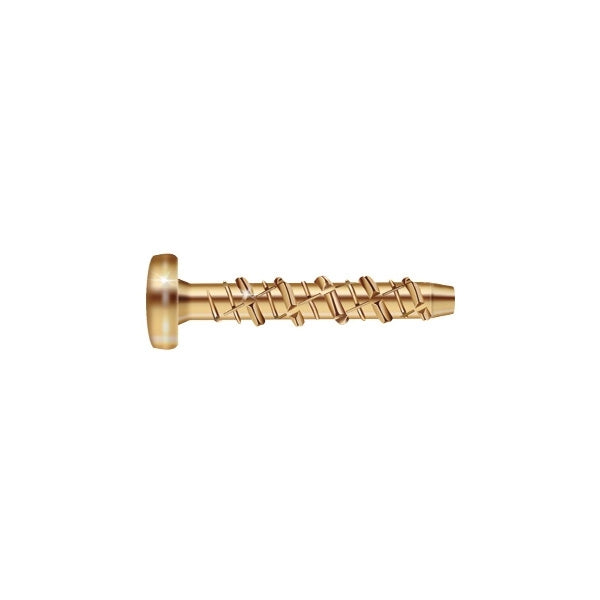

 GRK Fasteners CALIBURN XL 57774 Heavy-Duty Concrete Screw, 19/64 in Dia, 2-3/4 in L, 3135 lb, Steel

GRK Fasteners CALIBURN XL 57774 Heavy-Duty Concrete Screw, 19/64 in Dia, 2-3/4 in L, 3135 lb, Steel

SKU: 4898821

Brand: GRK Fasteners

Regular price
$54.99
Sale price
$54.99
Regular price
$0.00
Sold out
Unit price
per
In stock for FREE pickup in Whitinsville

Caliburn™ concrete screws are professionally engineered fasteners with a patented thread design for ease of driving the screw in concrete and similar applications. Available in three different head styles for multiple applications. Caliburn™, Caliburn™ PH and Caliburn™ XL are Climatek™ coated for high corrosion resistance. Caliburn's uncompromised draw and pull-out strength make it possible to be used in jobs which previously required an anchor. The screws aggressive thread design afford it the ability to be removed and reinserted into the same pilot hole numerous times without the concern of the fastener breaking or the threads wearing.

Product Details

Manufacturer: ITW BUILDEX AND ILLINOIS TOOL WORKS

Manufacturer's Part Number: 57774

Show me more Masonry Anchors

Product Features

  • Star drive eliminates stripping for improved productivity
  • Caliburn™ XL washer head design for superior holding power
  • Climatek™ coating is AC257 code approved for use in treated lumber
  • Heavy-duty threads lock into concrete and can be removed and reinserted without screw damage
  • Countersinking bugle head locks wood to concrete for complete installation and effective anchoring

Product Specifications

Diameter 19/64 in
Head Type Washer
Length 2-3/4 in
Material Steel
Minimum Embedment Depth 2-1/2 in
Shear Strength 3135 lb
Tensile Strength 2209 lb
Thread Length 2.362 in
Weight Capacity 3135 lb

Product Documents

Catalog Click here to download
Line Drawing Click here to download
Specification Sheet Click here to download
