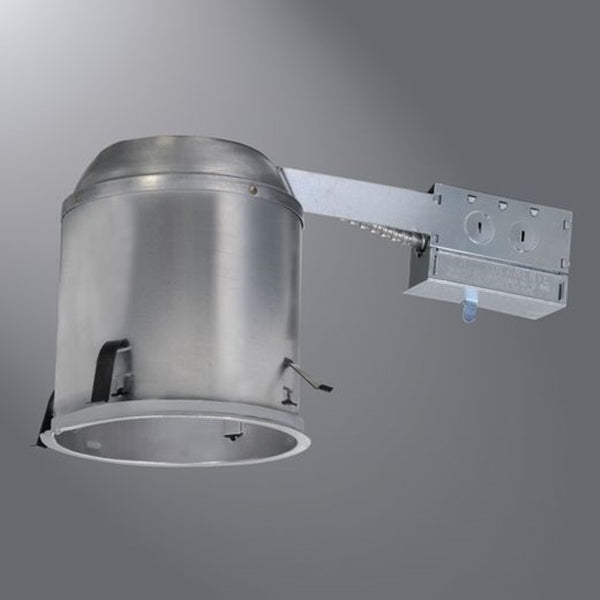

The H7 family of recessed housings are the standard in the industry for both commercial and residential applications. The wide variety of trims available allows a number of different lighting effects to be created with one basic housing. The H7RICAT housing is designed for installations where the housing will be in direct contact with insulation and also meet restricted air flow requirements.
Product Details
Manufacturer: EATON
Manufacturer's Part Number: H7RICAT
Show me more Recessed Lighting Housing
Product Features
- Die-formed housing
- Halo name embossed on housing
- Porcelain socket with nickel-plated brass screw shell
- NM cable pryouts and conduit knockouts in junction box
- Remodel springs accommodate 1/2 in and 5/8 in ceiling material
- Seven conduit knockouts are uniform 1/2 in size with true pryout slot
- Rigid socket plate adjusts and locks without tools for various lamp sizes
- Four remodel clips secure housing and accommodates 1/2 and 5/8 in ceiling material
- Housing will slip through 5-1/2 in ceiling opening, integral flange secures fixture against ceiling
- Three quick-connect connectors eliminate need for separate wire nuts - simply strip supply wires and push in
Product Specifications
| Ceiling Opening Size | 6-1/2 in |
| Ceiling Type | Insulated |
| Dimensions | 13.25 in L x 6.88 in W x 7.5 in H |
| Includes | Wiring Connector, (4) Pry-Outs |
| Material | Aluminum |
| Mounting Type | Recessed |
| Recessed Can Diameter | 6 in |
Product Documents
| Catalog | Click here to download |
| Specification Sheet | Click here to download |
