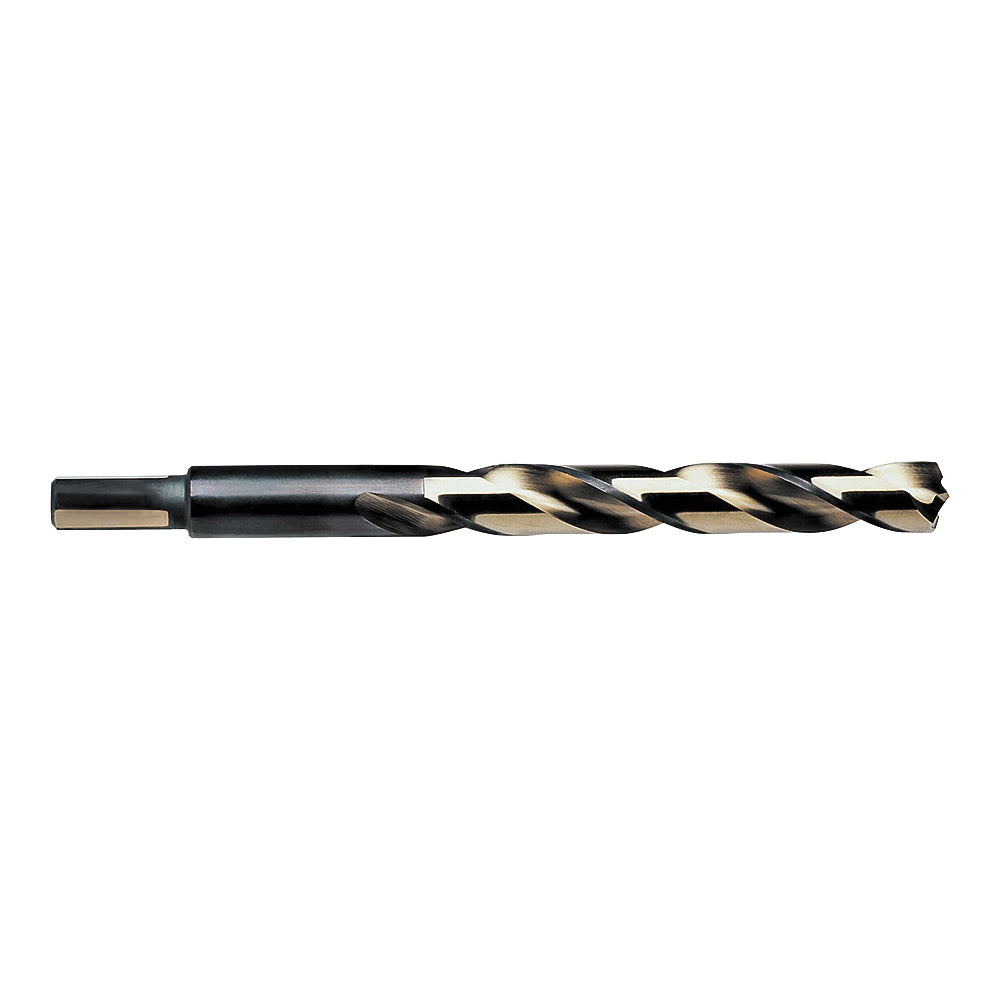

High-speed steel features a black body and gold flute Turbomax tip for burr-free holes; 3/8 in reduced shank fits all 3/8 in drills. Exact centering; no walking on straight and curved surfaces. A 3-flatted shank on 3/16 in and above for better chuck grip. Jobber length.
Product Details
Manufacturer: STANLEY BLACK & DECKER
Manufacturer's Part Number: 73631
Show me more Drill Bits
Product Features
- Ideal for use in keyless chucks
- 3/8 in reduced shank fits all 3/8 in drills
- Three-flatted shank design provides better chuck grip and reduces slippage
- Revolutionary tip design stays sharper longer and drills up to 10X faster than other leading drill bits
- Bit is constructed of M-2 high-speed steel for the excellent combination of strength, heat resistance and wear resistance
Product Specifications
| Applicable Materials | Ferrous Metal, Low Carbon, Stainless Steel |
| Diameter | 31/64 in |
| Finish | Black/Gold Oxide |
| Flute Length | 4-3/8 in |
| Flute Type | Spiral |
| Grade | M2 |
| Material | HSS |
| Overall Length | 5-7/8 in |
| Point Angle | 135 deg |
| Point Type | Self-Centering Jet |
| Shank Diameter | 31/64 in |
| Shank Length | 1-1/2 in |
| Shank Type | Reduced |
Product Documents
| Catalog | Click here to download |
