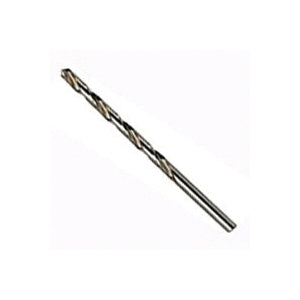

High-speed M-2 steel bit drills exact size hole for tapping; use where non-fractional sized holes are required in automotive, MRO, portable drill or stationary drill press applications. Jobber length.
Product Details
Manufacturer: STANLEY BLACK & DECKER
Manufacturer's Part Number: 81122ZR
Show me more Drill Bits
Product Features
- Drills exact hole size, ideal for tapping
- Used where more precisely sized holes are required
- Bit is constructed of M-2 high-speed steel for the excellent combination of strength, heat resistance and wear resistance
Product Specifications
| Applicable Materials | Metal, Plastic, Wood |
| Cutting Direction | Right Hand |
| Diameter | 0.157 in |
| Finish | Bright |
| Flute Length | 2 in |
| Flute Type | Spiral |
| Grade | M2 |
| Material | HSS |
| Number of Flutes | 4 |
| Overall Length | 3-1/8 in |
| Point Angle | 118 deg |
| Point Type | Chisel |
| Shank Diameter | 0.157 in |
| Shank Length | 1-1/8 in |
| Shank Type | Straight |
Product Documents
| Catalog | Click here to download |
