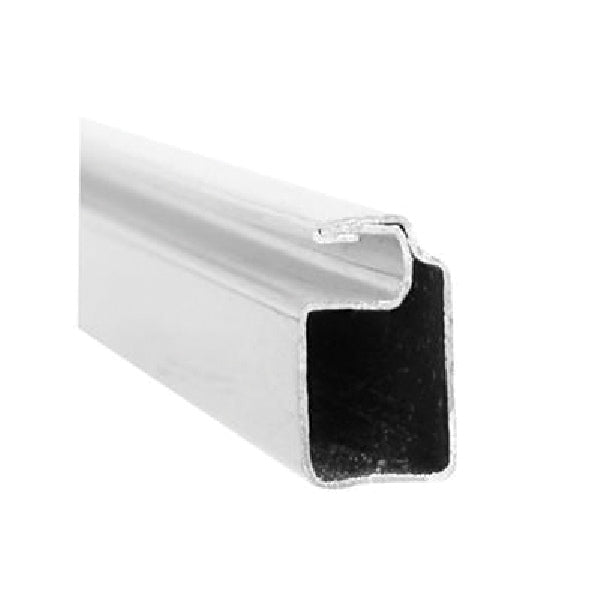

Prime-Line 3/4 x 7/16 in, 0.02 ga roll formed screen frame is designed for use on wood windows and some sliding aluminum windows. Prime-Line screen frames are manufactured with a slight camber (bow) that provides tension to the finished screen. This features helps eliminate wrinkles in the screen fabric. The screen frame accepts up to 0.185 in vinyl spline and uses miter (angle) cut screen corners. White paint, 94 in long.
Product Details
Manufacturer: PRIME-LINE PRODUCTS
Manufacturer's Part Number:
Show me more Window Screen Frame
Product Features
- Easily cut to size with a hacksaw
- Spline channel measures 0.165 in wide
- Use 0.165 in serrated vinyl spline with aluminum screen mesh
- Use 0.185 in serrated vinyl spline with fiberglass screen mesh
- Great screen frame for making screens for wood double-hung windows
- This frame can also be used for some sliding window replacement screens
- 3/4 x 7/16 in stamped aluminum miter cut (angle) screen corners are recommended
Product Specifications
| Color | White |
| Length | 94 in |
| Material | Aluminum |
| Material Thickness | 0.02 ga |
| Width | 3/4 in |
Product Documents
| Catalog | Click here to download |
