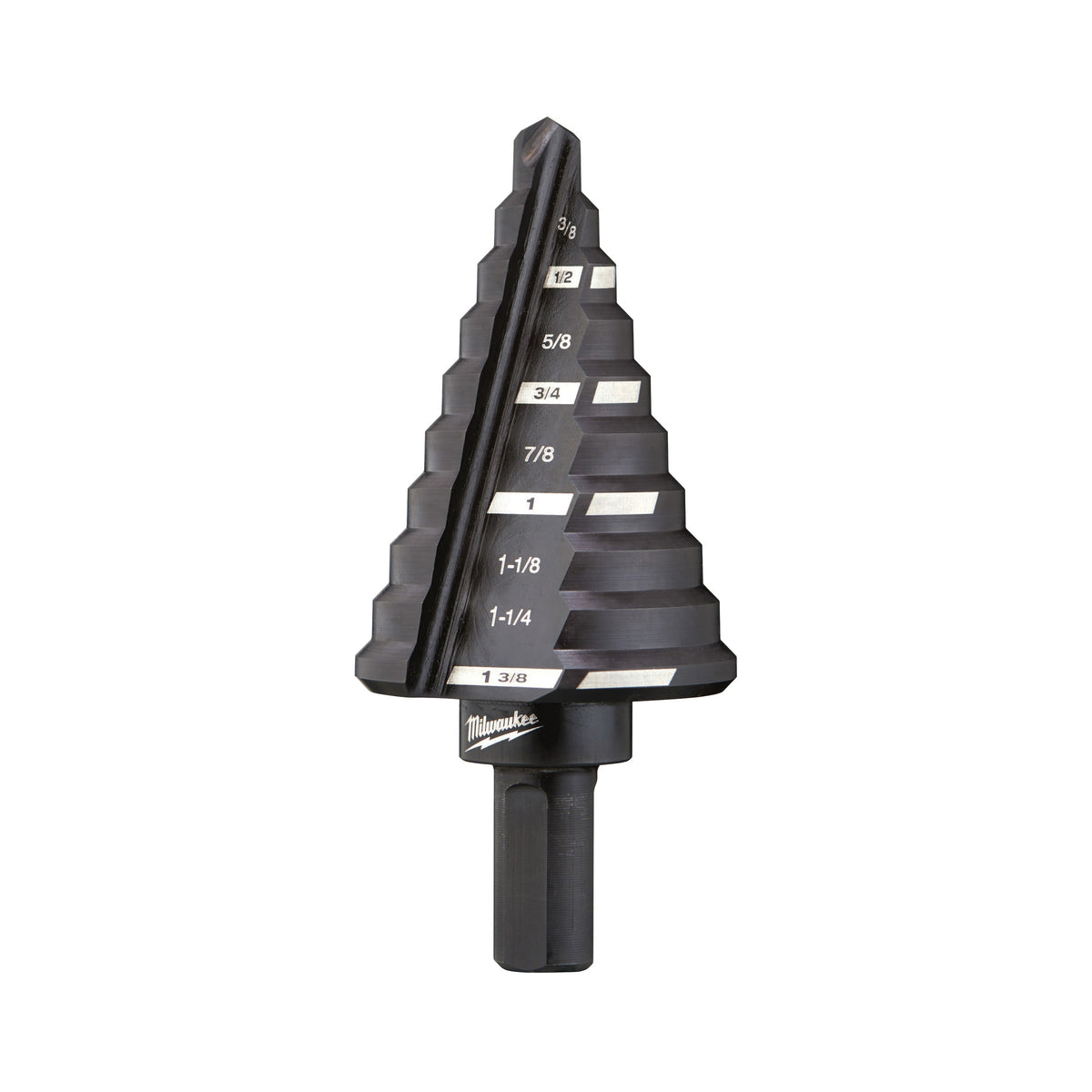

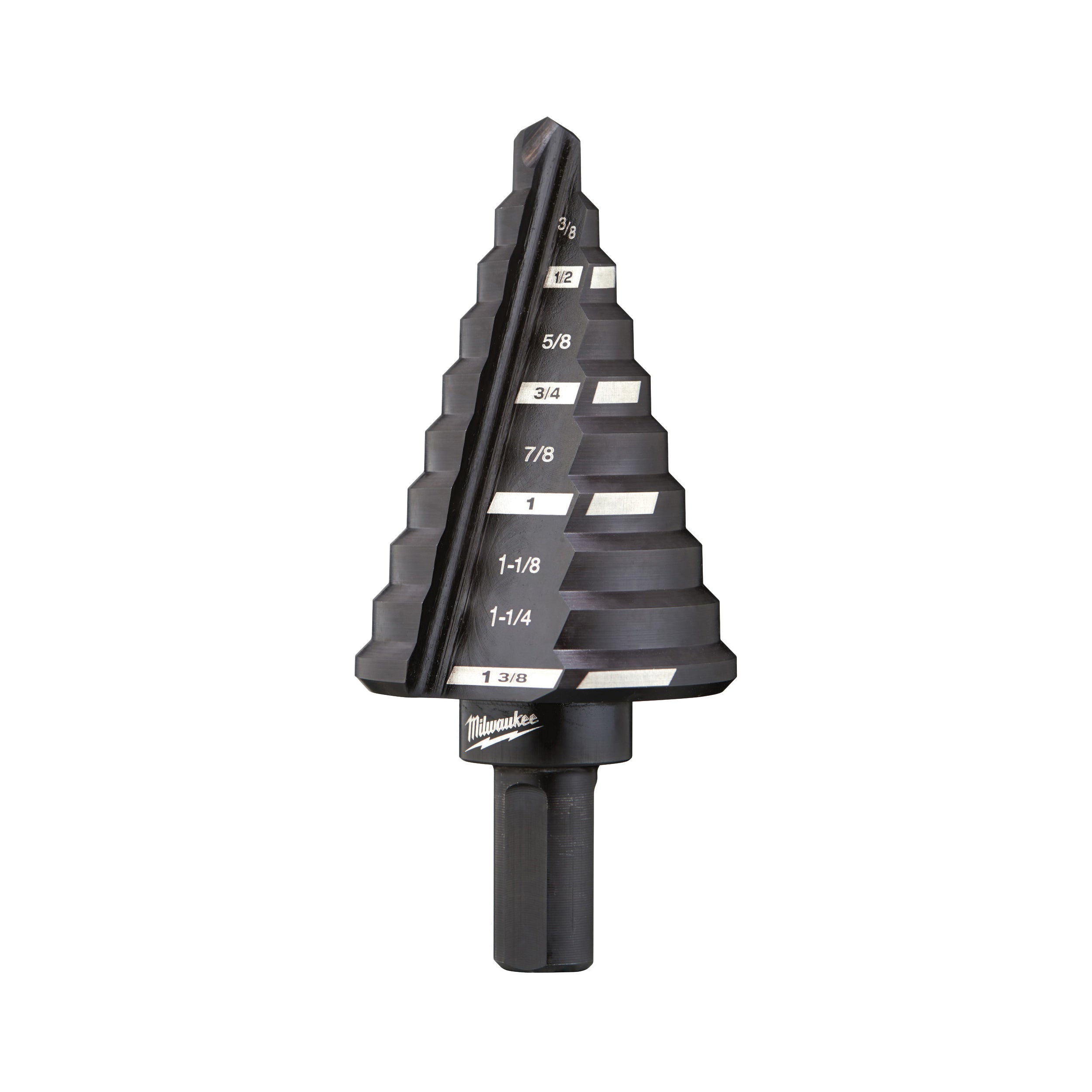

Milwaukee® step drill bits with jam-free performance feature a dual flute design delivering up to 2X faster hole times, up to 4X longer life and up to 50% more holes per battery charge than competitors. Ideal for drilling small and large diameter holes in steel and plastic, these bits are optimized for cordless drills in high speed. The Rapid Strike™ tip allows for a fast and accurate start that generates less heat, resulting in longer bit tip life. Black oxide coating also enhances durability, hole quality and bit life. For user convenience and accuracy, each bit has laser-engraved reference marks you can see while drilling. The three-flat Secure-Grip™ shank ensures a solid connection with the drill chuck. The #5 step drill bit has 10 hole sizes in 1/8 in increments ranging from 1/4 to 1-3/8 in. Jam-free performance in high-speed with most professional 18 V cordless drills with Lithium-Ion battery technology.
Product Details
Manufacturer: MILWAUKEE TOOL
Manufacturer's Part Number: 48-89-9205
Show me more Drill Bits
Product Features
- Dual-flute design provides greater speed and control
- Laser-engraved reference marks to easily stop on any hole size
- 3-flat Secure-Grip™ shanks reduces bit slippage in the chuck
- Up to 50% more holes per battery charge for greater user productivity
- Rapid Strike tip creates fast, accurate starts and generates less heat
Product Specifications
| Applicable Materials | Metal, Plastic |
| Diameter | 1/4 to 1-3/8 in |
| Finish | Black Oxide |
| Flute Type | Straight |
| Material | Steel |
| Number of Flutes | 2 |
| Overall Length | 3-3/64 in |
| Point Type | Rapid Strike |
| Shank Diameter | 3/8 in |
| Shank Type | 3-Flat, Reduced |
