SKU: 11JHF65
Brand: MiTek

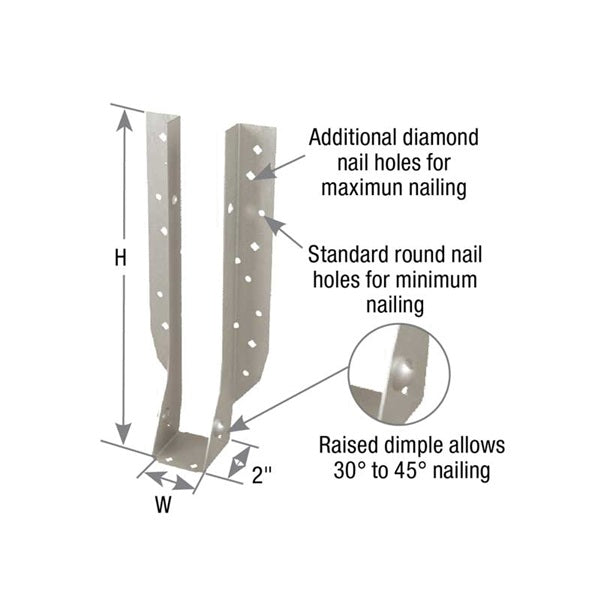

Designed to provide lateral support for the top chords of I-Joists in depths up to 16 in. G90 galvanizing finish. Meets ICC-ES ESR-1781, FL13285 and L.A. City RR25843 codes. Install 10d x 1-1/2 in nails into joist through raised dimple at 45 deg angle. For THF Min, fill all round nail holes. For THF Max, fill all round and diamond holes. For information including allowable loads and number of fasteners, please see USP lumber connectors charts in the Orgill paper catalog R7 reference pages. For additional sizing information, visit www.uspconnectors.com.
Product Details
Manufacturer: MITEK INDUSTRIES, INC
Manufacturer's Part Number: THF25112
Show me more Joist Hangers
Depth | 2-1/2 in |
Fastener Size | 10d x 1-1/2 in |
Fastener Type | Nail |
Height | 11-1/8 in |
Material | Galvanized Steel |
Mounting Type | Face |
Size | 2-1/2 x 11-7/8 in |
Weight Capacity | 85 lb |
Width | 2-1/2 in |
