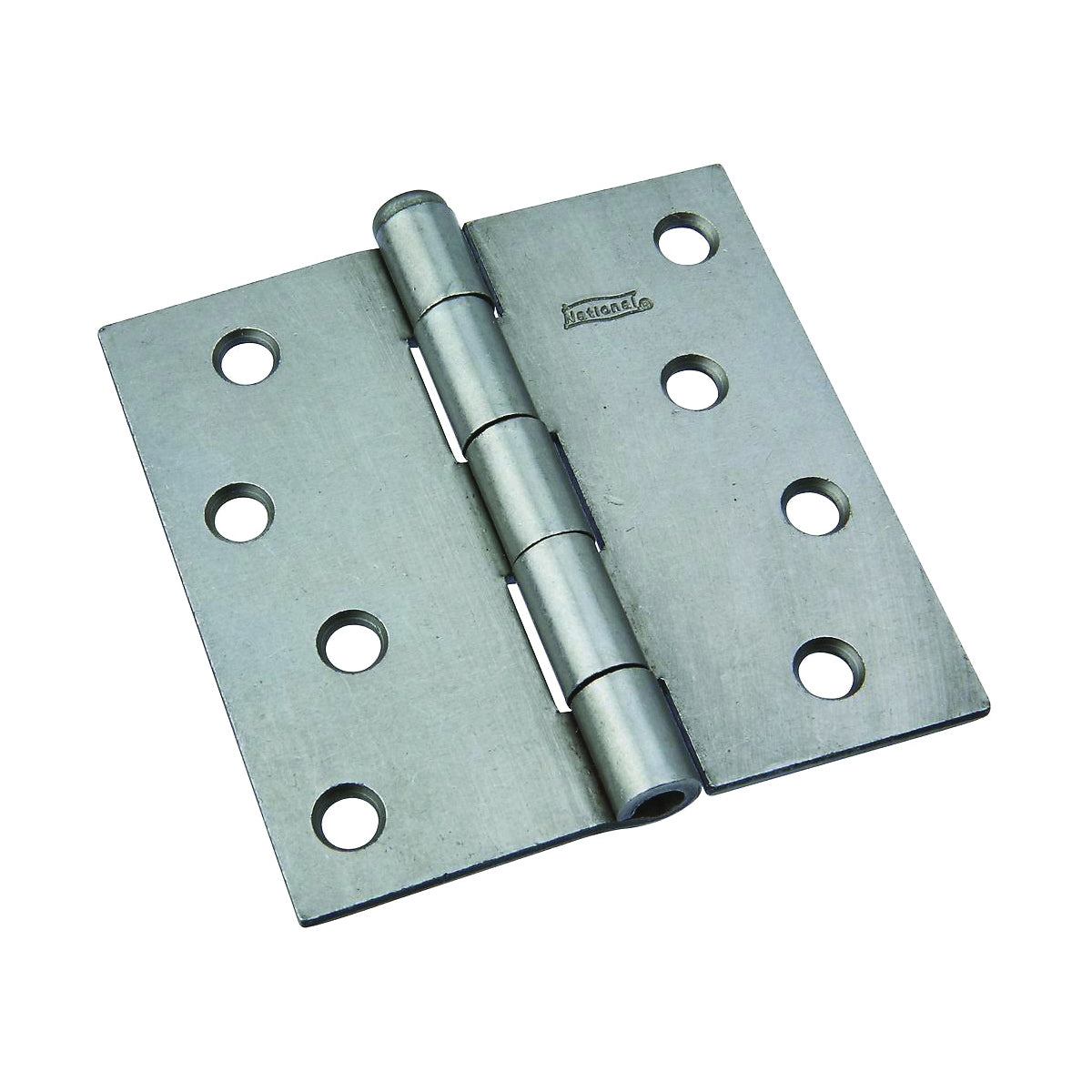

504. Designed for general utility and industrial applications. Hinges are swaged for mortise installations. Loose pin allows doors to be removed without taking off hinges. Plain steel version can be welded. Boxed.
Product Details
Manufacturer: STANLEY-NATIONAL HARDWARE
Manufacturer's Part Number:
Show me more Utility Hinges
Product Features
- Swaged for mortise installations
- Loose pin allows doors to be removed without removing hinge
Product Specifications
| Dimensions | 3.98 in L x 4 in W |
| Door Leaf Thickness | 0.11 in |
| Door Leaf Width | 4 in |
| Finish | Steel |
| Frame Leaf Thickness | 0.11 in |
| Frame Leaf Width | 4 in |
| Hole Spacing | 1 in |
| Material | Steel |
| Mounting Hole Diameter | 0.29 in |
| Mounting Type | Full Mortise |
| Number of Knuckles | 5 |
| Number of Mounting Holes | 8 |
| Pin Diameter | 0.27 in |
| Pin Type | Removable, Loose |
| Weight Capacity | 70 lb |
Product Documents
| Catalog | Click here to download |
| Line Drawing | Click here to download |
| Instruction/Installation Manual | Click here to download |
