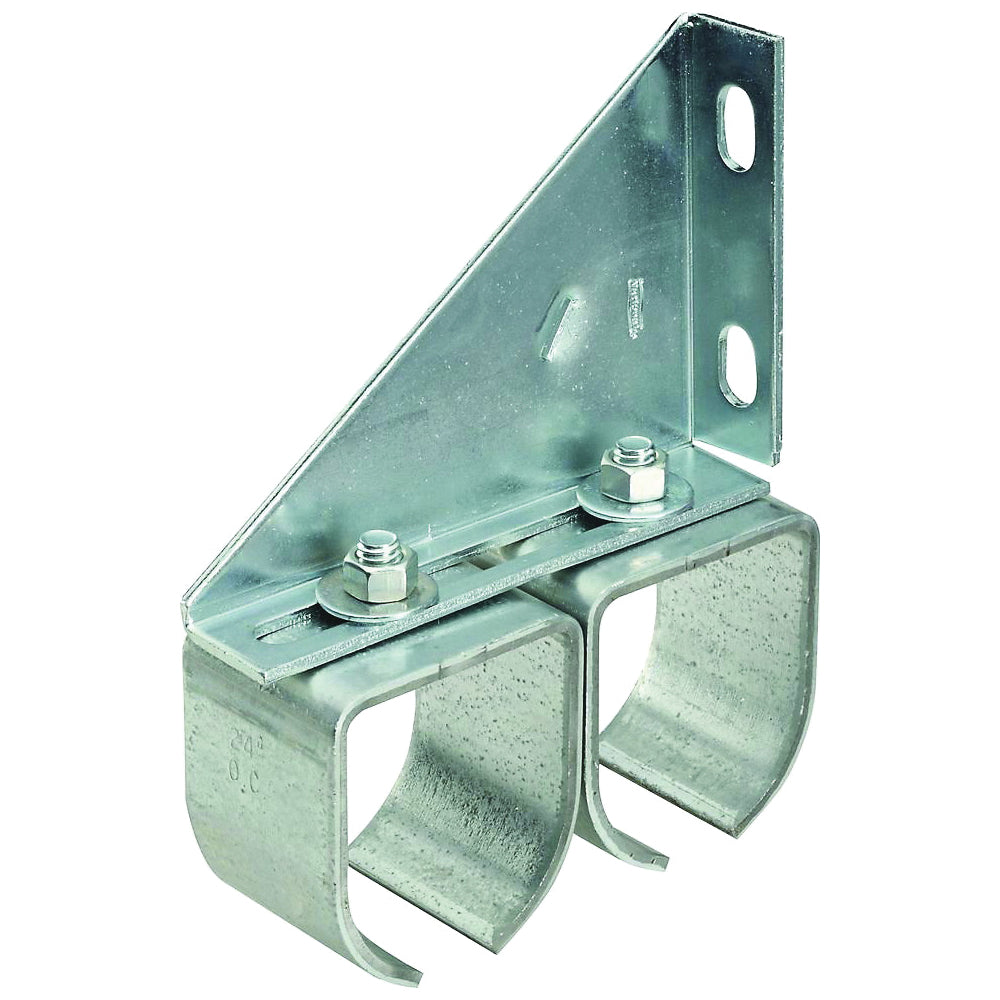

Designed to be used with #5400 round rail to mount double runs of rail for by-passing doors to side of building installation. Includes lag bolt, (2) carriage bolts and (2) nuts. (1) Bracket should be installed every 2 ft of rail. Suitable for use on corrugated metal siding due to narrow mounting surface.
Product Details
Manufacturer: STANLEY-NATIONAL HARDWARE
Manufacturer's Part Number: N193-904
Show me more Door Rails & Tracks
Product Features
- One bracket should be installed every 2 ft rail
- Adjustable to bring rail closer or further away from building
- For use on corrugated metal siding due to narrow mounting surface
- Designed to be used with #5400 round rail to mount double runs of rail for by-passing doors to side of building installation
Product Specifications
| Finish | Galvanized |
| Height | 7-3/32 in |
| Includes | Lag Bolt, (2) Carriage Bolts and Nuts |
| Length | 5-13/16 in |
| Material | Steel |
| Suitable for | 5400 Round Rail |
| Width | 2 in |
Product Documents
| Line Drawing | Click here to download |
| Instruction/Installation Manual | Click here to download |
