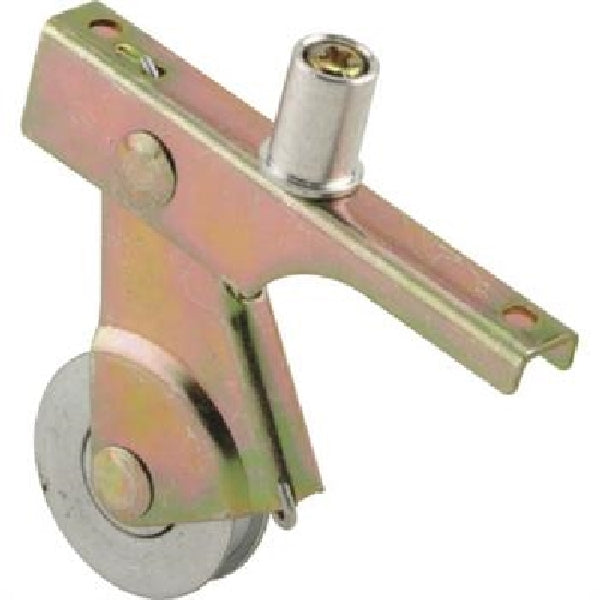

This steel housing and spring-loaded arm with the 1 in steel ball bearing roller attached is used by Bay-Mills as well as several patio door manufacturers. The roller arm is spring-loaded and adjusted by the adjustment sleeve and screw on top.
Product Details
Manufacturer: PRIME-LINE PRODUCTS
Manufacturer's Part Number:
Show me more Door Rollers
Product Features
- Adjustable steel housing
- Spring-loaded arm with roller attached
- Steel ball bearing roller will roll smoothly
- Used by Bay-Mills and other patio door manufacturers
Product Specifications
Bearing Type | Ball |
Dimensions | 2-7/16 x 5/16 x 1/2 in |
Includes | Screws and Adjustment Sleeve |
Material | Steel |
Roller Diameter | 1 in |
Roller Edge Type | Concave |
Roller Width | 1/4 in |
Shaft Diameter | 5/16 in |
