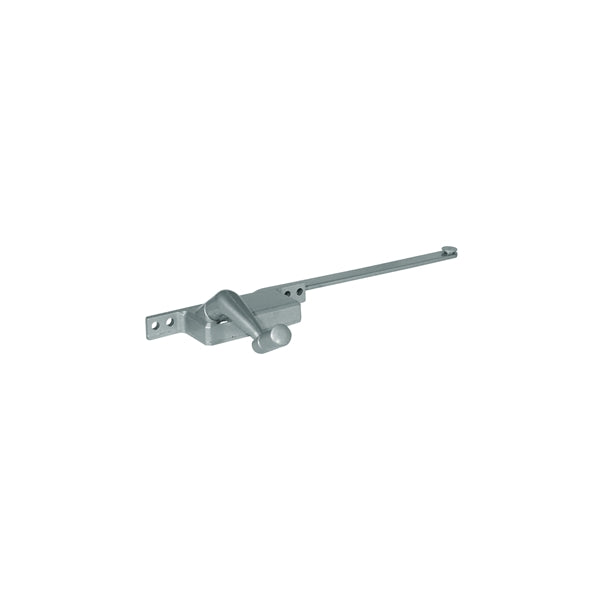

The H 3514 casement window operator is a left hand aluminum square body type. It has a 9 in steel arm with a round disc on the tip (some older styles had a small wheel instead of a disc). The disc slides in the H 3529 casement track located on the bottom of the casement window. It is worm gear driven by a 3/8 in crank spindle. The matching crank handle that fits onto the crank spindle and installation screws are included. Mounting holes available are 3-7/8 and 4-3/4 in apart.
Product Details
Manufacturer: PRIME-LINE PRODUCTS
Manufacturer's Part Number: H 3514
Show me more Window Operators
Product Features
- 3-7/8 in and 4-3/4 in mounting holes
- Casement track may also need to be replaced
Product Specifications
| Finish | Aluminum |
| Handle Type | Crank |
| Includes | Matching Crank Handle, Mounting Screw |
| Right Hand/Left Hand | Left |
| Suitable for | Older Steel Framed Windows |
Product Documents
| Instruction/Installation Manual | Click here to download |
