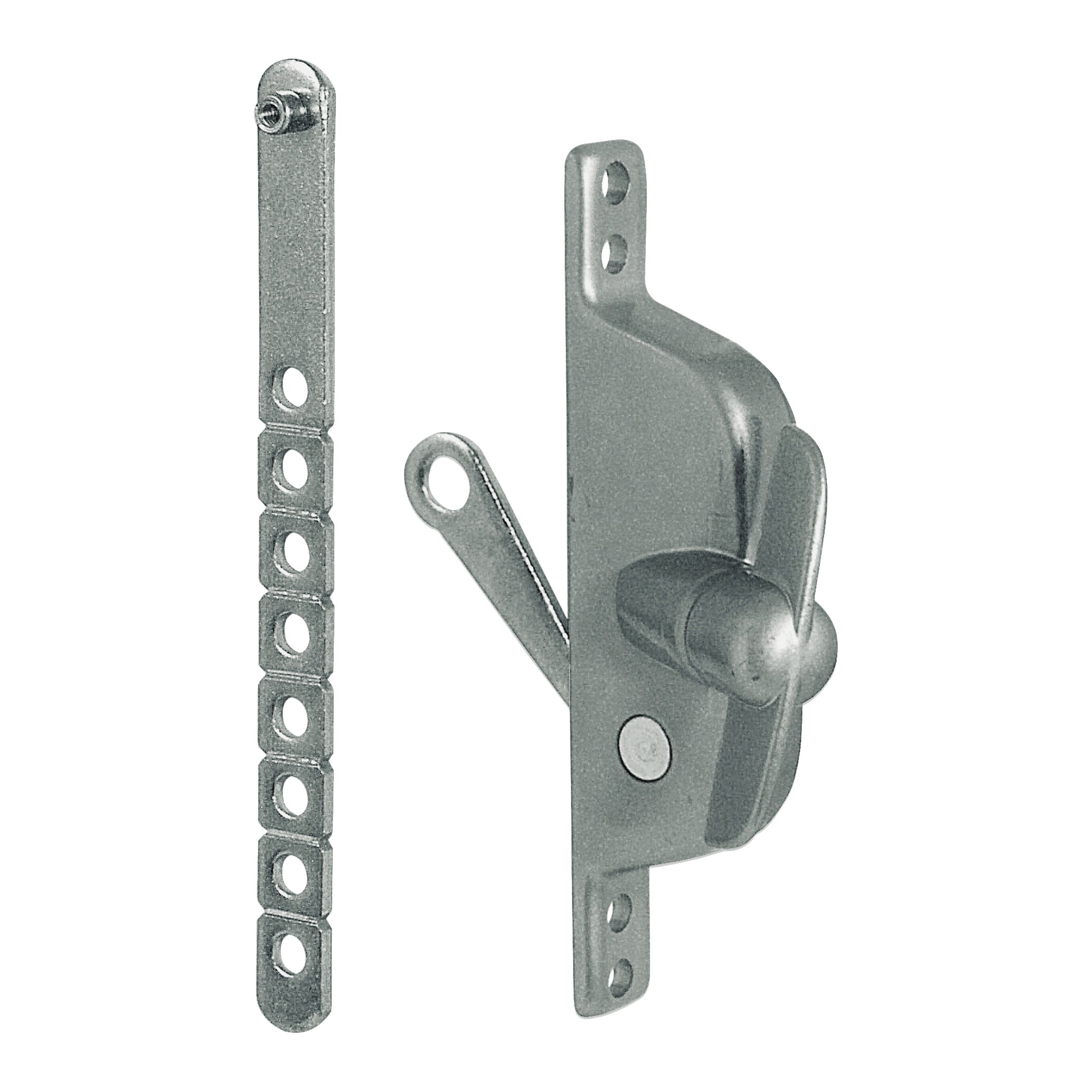

H 3546 is a universal louver operator in aluminum finished die-cast construction. The mounting holes are 4-3/4 or 3-7/8 in apart. It is a reversible non-handed design that can be used on either left or right handed installations. The universal link arm comes with break-off points with holes every 1/2 in providing a link arm 1-13/16 to 5-5/16 in long to accommodate the needs of installation. It comes with a matching tee handle that fits the 5/16 in spindle.
Product Details
Manufacturer: PRIME-LINE PRODUCTS
Manufacturer's Part Number:
Show me more Window Operators
Product Features
- Mounting holes are 3-7/8 in or 4-3/4 in apart
- Adjustable link arm with breaks off every 1/2 in
Product Specifications
| Finish | Aluminum |
| Handle Type | Tee |
| Includes | Fastener, Matching Tee Handle |
| Mounting Hole Size | 1/2 in |
| Right Hand/Left Hand | Left/Right |
Product Documents
| Instruction/Installation Manual | Click here to download |
