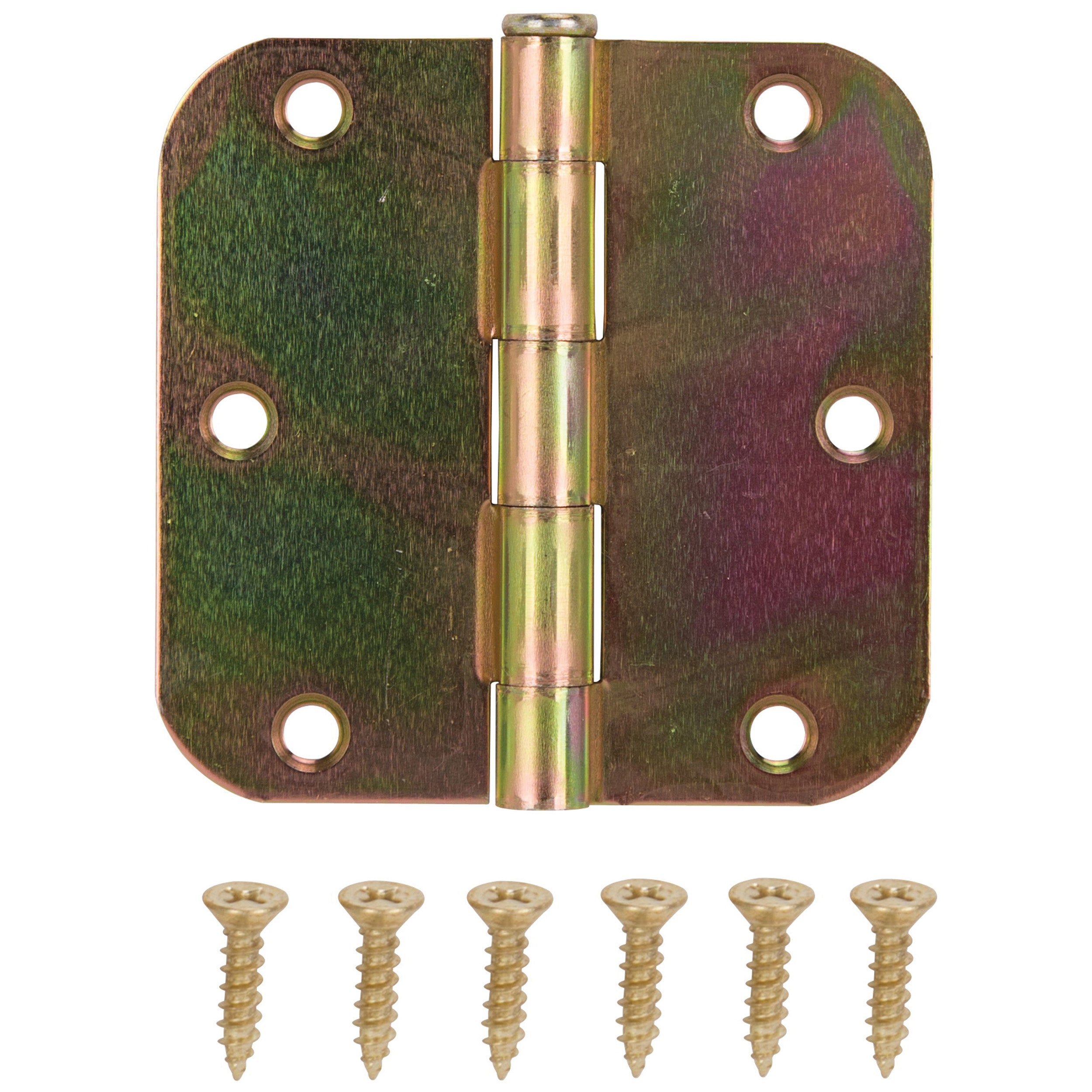

The ProSource door hinge offers a unique and creative hardware solutions for your home. It is made of steel and measures 2.2 mm thick with 5-knuckles and a loose pin.
Product Details
Manufacturer: WORLDWIDE SOURCING
Manufacturer's Part Number: 20347ST4C
Show me more Rounded Hinges
Product Features
- Satin brass tone
- Five knuckles, loose pin
Product Specifications
Color | Yellow Zinc Dichromate |
Corner Radius | 5/8 in |
Dimensions | 3-1/2 x 3-1/2 in |
Door Leaf Height | 3-1/2 in |
Door Leaf Thickness | 2.2 mm |
Door Leaf Width | 3-1/2 in |
Door Thickness | 1-3/4 in |
Finish | Yellow Zinc Dichromate |
Includes | Screws |
Material | Steel |
Mounting Hole Diameter | 7 mm |
Mounting Type | Screw |
Number of Knuckles | 5 |
Number of Mounting Holes | 6 |
Pin Diameter | 6 mm |
Pin Type | Loose |
Range of Motion | 180 deg |
