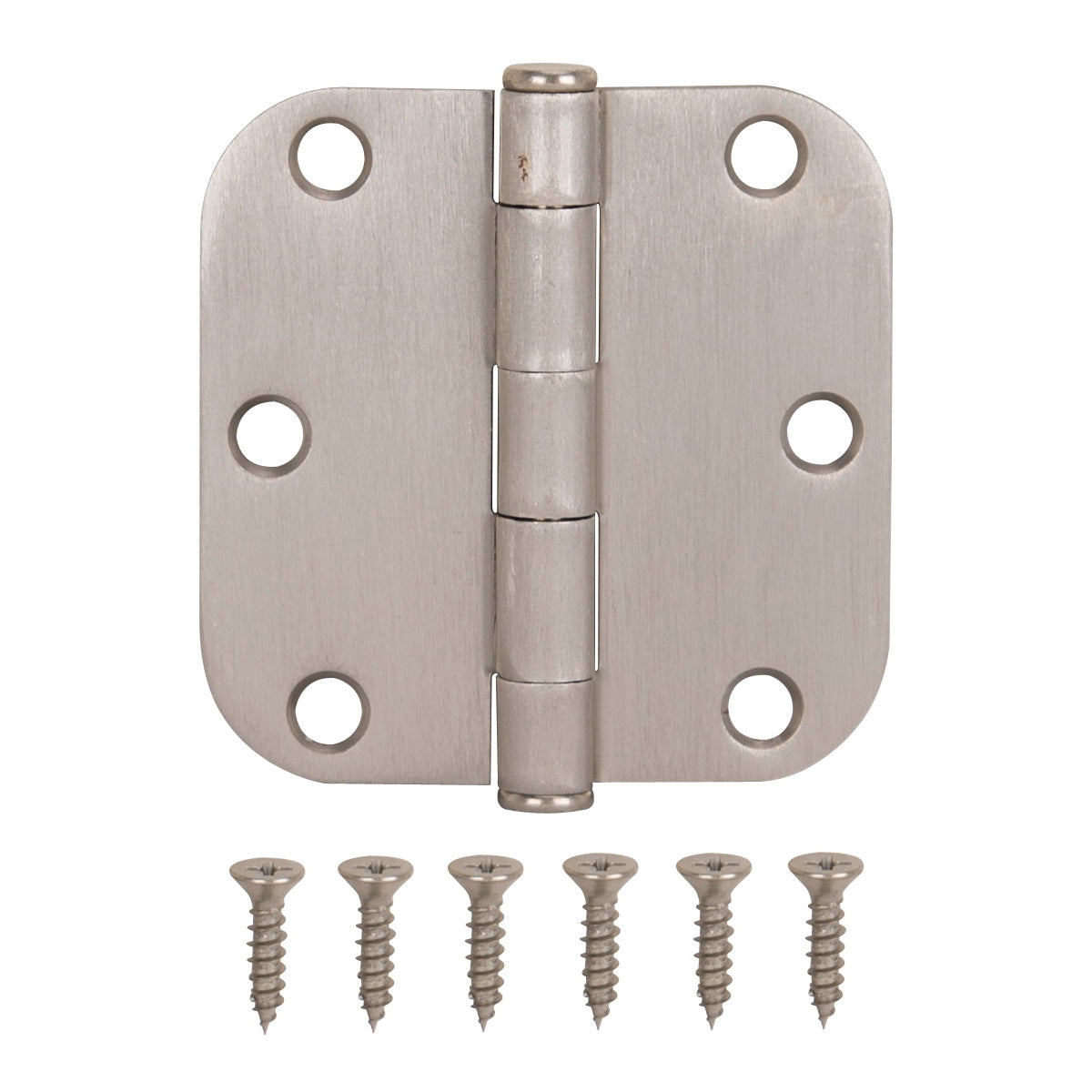

The ProSource door hinge is made of steel. The hinge offers a unique and creative hardware solutions for your home. It's 2.2 mm thick with 5-knuckles and a loose pin.
Product Details
Manufacturer: EXCLUSIVELY ORGILL
Manufacturer's Part Number: LR-702-PS
Show me more Rounded Hinges
Product Features
- Five knuckles, loose pin
- For residential doors up to 1-1/2 thick
Product Specifications
| Color | Satin Nickel |
| Corner Radius | 5/8 in |
| Dimensions | 3 x 3 in |
| Door Leaf Height | 3 in |
| Door Leaf Thickness | 2 mm |
| Door Leaf Width | 3 in |
| Door Thickness | 1-1/2 in |
| Finish | Satin Nickel |
| Includes | Screws |
| Material | Steel |
| Mounting Hole Diameter | 7 mm |
| Mounting Type | Screw |
| Number of Knuckles | 5 |
| Number of Mounting Holes | 6 |
| Pin Diameter | 6 mm |
| Pin Type | Loose |
| Range of Motion | 180 deg |
