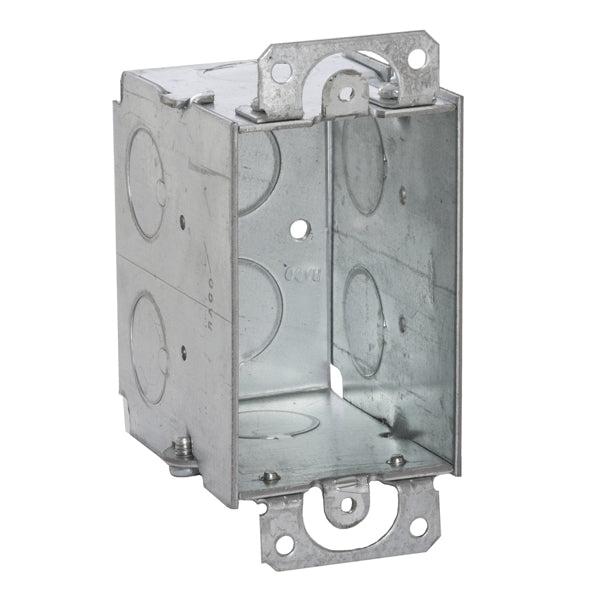

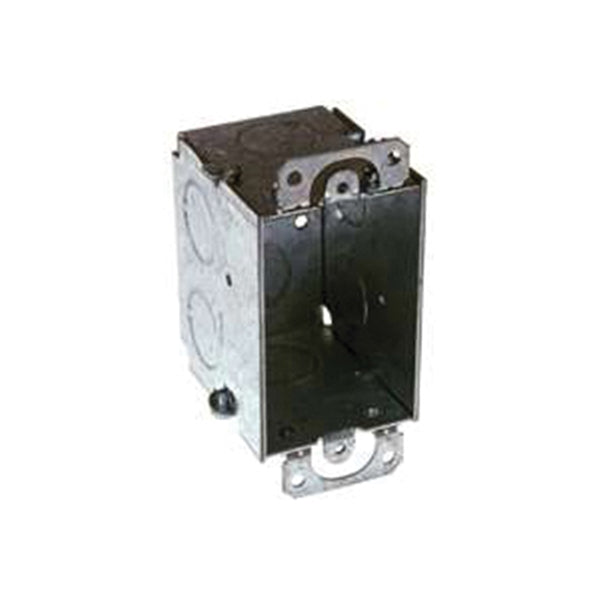

For conduit. 3 in x 2 in switch box. No bracket, adjustable plaster ears allow box to be used in old work applications. 14 cu-in capacity, 2-3/4 in deep, four 1/2 in side knockouts, two 1/2 in bottom knockouts and two 1/2 in end knockouts. Acceptable for use in 2 hrs rated fire walls. UL listed.
Product Details
Manufacturer: HUBBELL
Manufacturer's Part Number: 560
Show me more Switch Boxes
Product Features
- Acceptable for use in 2 hrs fire rated walls
- Plaster ears allow the box to be used in old work applications
- Gangable switch boxes offer the option of constructing a box to hold two or more devices
Product Specifications
| Cable Entry | Knockout |
| Color | Gray |
| Cubic Capacity | 14 cu-in |
| Dimensions | 2.75 in L x 4.22 in W x 2 in H |
| Finish | Galvanized |
| Includes | Plaster Ears |
| Knockout Size | 1/2 in |
| Material | Steel |
| Mounting Type | Thread |
| Number of Gangs | 1 |
| Number of Knockouts | 8 |
| Number of Outlets | 1 |
Product Documents
| SDS | Click here to download |
| Line Drawing | Click here to download |
| Specification Sheet | Click here to download |
