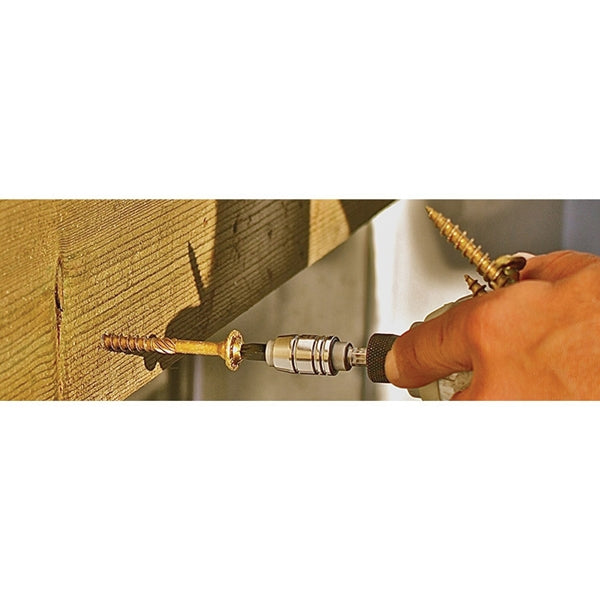

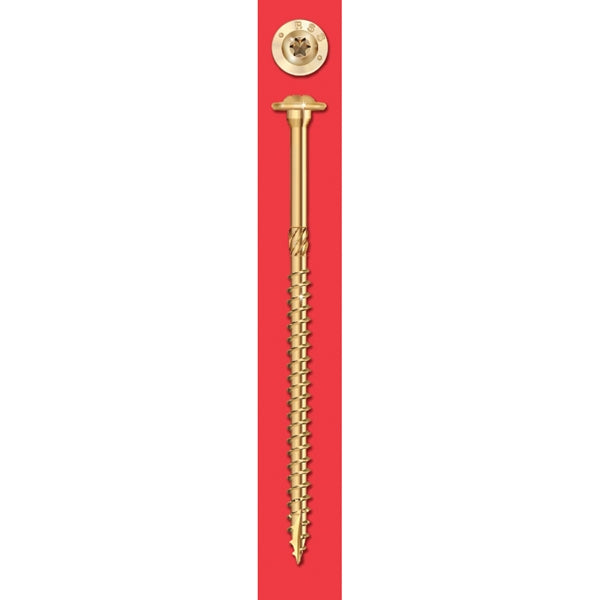

Ramset RSS 11137 Structural Screw, 3-1/8 in L, W-Cut Thread, Washer Head, Recessed Star Drive, Zip-Tip Point
Ramset RSS 11137 Structural Screw, 3-1/8 in L, W-Cut Thread, Washer Head, Recessed Star Drive, Zip-Tip Point
  • Load image into Gallery viewer, Ramset RSS 11137 Structural Screw, 3-1/8 in L, W-Cut Thread, Washer Head, Recessed Star Drive, Zip-Tip Point
  • Load image into Gallery viewer, Ramset RSS 11137 Structural Screw, 3-1/8 in L, W-Cut Thread, Washer Head, Recessed Star Drive, Zip-Tip Point

Ramset RSS 11137 Structural Screw, 3-1/8 in L, W-Cut Thread, Washer Head, Recessed Star Drive, Zip-Tip Point

SKU: 0151217

Brand: Ramset

Regular price
$84.99
Sale price
$84.99
Regular price
$0.00
Sold out
Unit price
per
In stock for FREE pickup in Whitinsville

GRK's RSS™ rugged structural screw is made of specially hardened steel to provide you with high tensile, torque and shear strength. The sharp threads and points bite instantly into the material (including hardwood), reducing the splitting effect due to smaller shanks. RSS™ screws which are 3-1/8 in and longer have a six threaded CEE thread that enlarges the screw hole for the non-threaded portion of the fastener, allowing the wood to settle easily and increasing the screw's drawing strength. The CEE thread also reduces the friction on the screw shank which can result in lowering the driving torque and the likelihood of splitting the wood. This is why the RSS™ screw is an efficient lag screw alternative. Our round head with built-in shield (washer type head) has no sharp edges like conventional lag screws. The added shoulder (nominal diameter) underneath the washer has the ability to center the RSS™ screw in pre-drilled hardware like hinges and connector plates.

Product Details

Manufacturer: ITW BUILDEX AND ILLINOIS TOOL WORKS

Manufacturer's Part Number: 11137

Show me more Screws

Product Features

  • Washer head for immense holding power
  • W-CUT™ for low torque, faster drive
  • CEE THREAD™ enlarges hole to reduce splitting
  • ZIP-TIP™ ensures no pre-drilling and faster penetration
  • Case hardened steel for high tensile, torque and shear strength
  • Recessed star drive for zero stripping, with six points of contact
  • Climatek™ coating is AC257 code approved for use in treated lumber
  • Cutting pockets provide a clean hole, reduces splitting and bore with precision

Product Specifications

Applicable Materials Treated Lumber
Drive Size T25
Drive Type Recessed Star
Head Type Washer
Includes 2 in Bit
Length 3-1/8 in
Material Steel
Point Type Zip-Tip
Thread Type W-Cut
Type Rugged

Product Documents

Catalog Click here to download
Specification Sheet Click here to download
