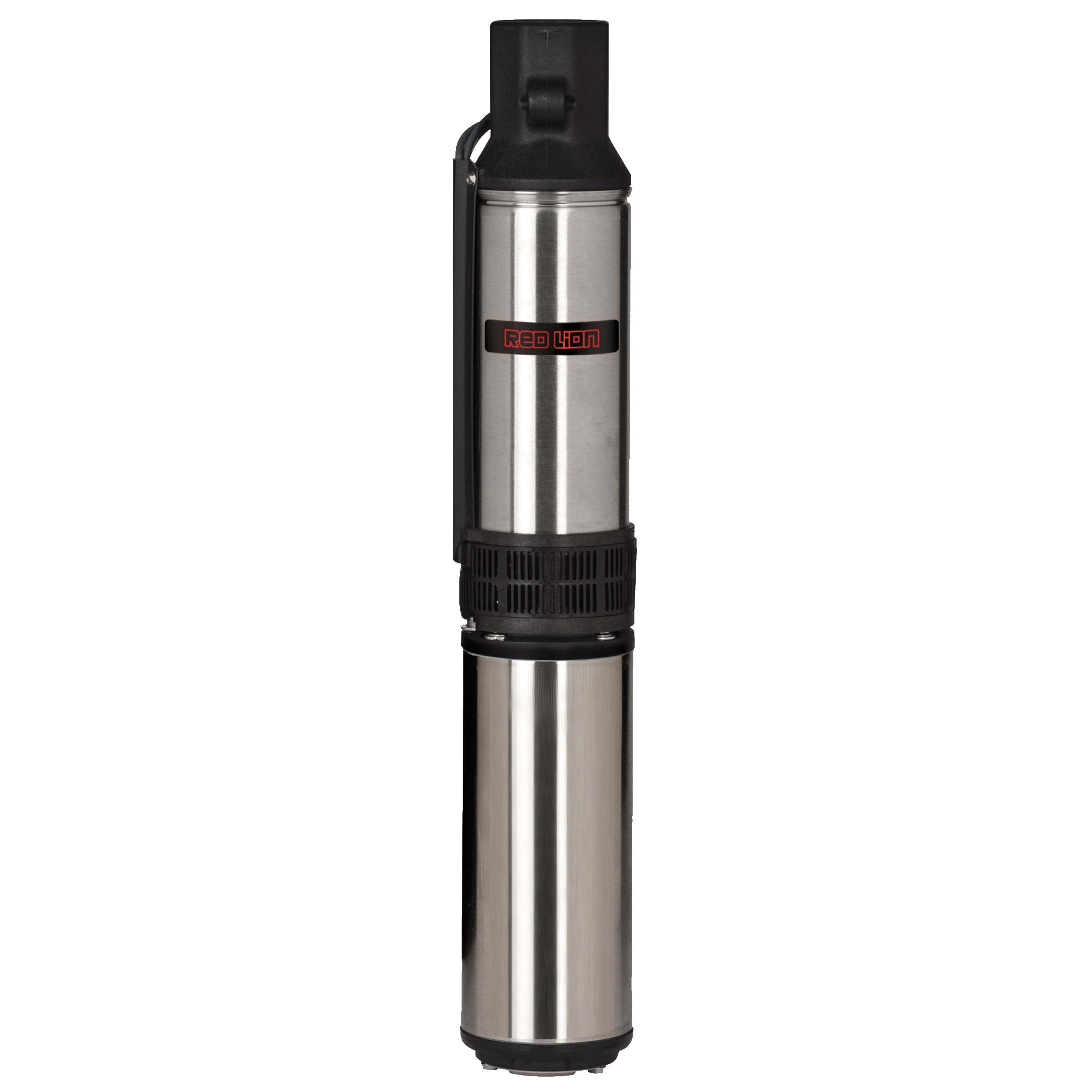

4 in submersible deep well pump. Powered by a 2-wire, industry standard VMC motor. Built-in check valve prevents backflow and ensures system pressure. Built-in suction screen and 1-1/4 in NPT thermoplastic discharge head helps to prevent debris from clogging impellers and provides full flow performance without the risk of corrosion.
Product Details
Manufacturer: FRANKLIN ELECTRIC
Manufacturer's Part Number: RL12G10-2W2V
Show me more Well & Jet Pumps
Product Features
- Stainless steel pump shell
- Built-in suction screen and check valve
- Thermoplastic discharge and motor bracket
- Powered by industry standard 2-wire motors
Product Specifications
| Connection Size | 1-1/4 in |
| Connection Type | FNPT |
| Current Rating | 10.4 A |
| Flow Rate | 12 gpm |
| HP Rating | 1 hp |
| Material | Stainless Steel |
| Maximum Head | 399 ft |
| Motor Type | 2-Wire |
| Pressure Rating | 80 psi |
| Suitable for | 4 in Dia and Above Drilled Wells |
| Voltage Rating | 230 V |
Product Documents
| Specification Sheet | Click here to download |
