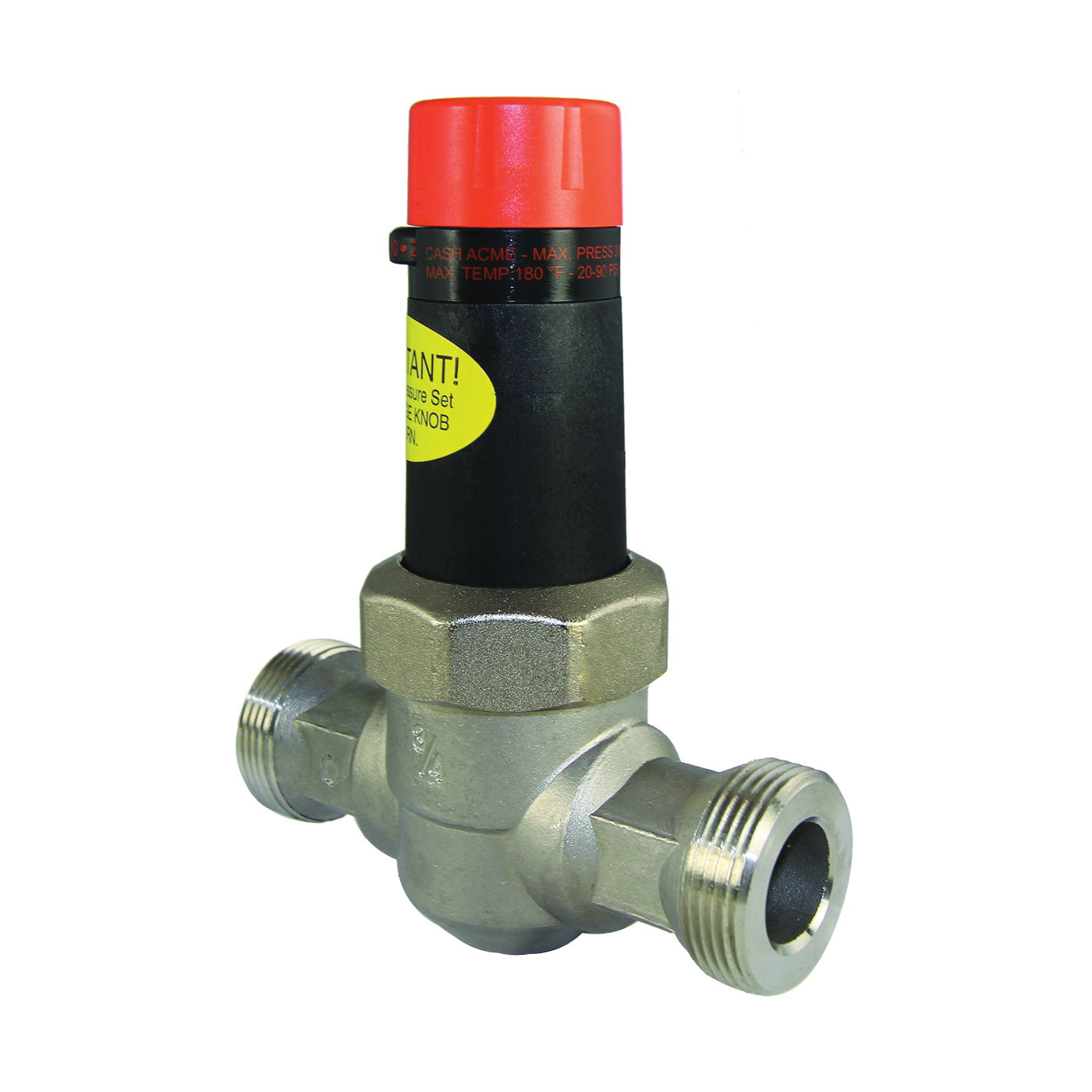

The EB-25 SS from Cash Acme brings state-of-the-art water control technology to pressure regulators. This version of the EB-25 boasts all of the features of the original, while providing the new benefit of stainless steel internals and 100% lead-free materials of construction. The EB-25 has a convenient orange pressure adjustment twist-cap and numerical indicator which makes installation a quick, one-man job. The unique design also eliminates the water whistle or hum associated with most PRVs, due to innovative "micro-fingers" that dissipate noise as water flows across the seat. Patented single-cartridge design of this valve has fewer parts for increased reliability and can be serviced without having to remove the valve body. While pressure reduction is an everyday need necessary to protect appliances and plumbing fixtures, the advanced water control technology of the EB-25 provides unique new benefits to this common application. The biggest breakthrough is the simple numerical indicator that allows the exact desired pressure to be set even before the valve is installed. Once installed, patented design features mean the EB-25 offers improved reliability and easier access for maintenance. The EB-25 is lead-free and intended for use where supply line pressure does not exceed 300 psi. These valves are supplied by the factory with a standard delivery setting of 45 psi. The outlet pressure can be adjusted from 20 to 90 psi without changing the spring. The EB-25 is suited for either cold or hot (to 180 deg F) water service.
Product Details
Manufacturer: RELIANCE WORLDWIDE
Manufacturer's Part Number: 22266-0045
Show me more Pressure Regulating Valves
Product Features
- Integral back-pass check with the cartridge
- One-piece cartridge can be removed with valve body remaining in place
- Cutting edge design and production incorporates "micro-fingers" that dissipate noise due to water flow across the seat
- Convenient orange twist-cap eliminates need for wrench adjustment, numerical indicator shows the pressure without the need for a gauge
Product Specifications
Body Material | Stainless Steel |
Connection Size | 1 in |
Connection Type | NPT |
Dimensions | 4.88 in L x 5.89 in H |
Includes | Pressure Indicator |
Media | Water |
Operating Pressure | 20 to 90 psi |
Softgoods Material | EPDM/Polyphenylene |
Temperature Rating | 33 to 180 deg F |
Trim Material | Stainless Steel |
Product Documents
Catalog | Click here to download |
