Whitinsville
SKU: 1793744
Brand: Siemens

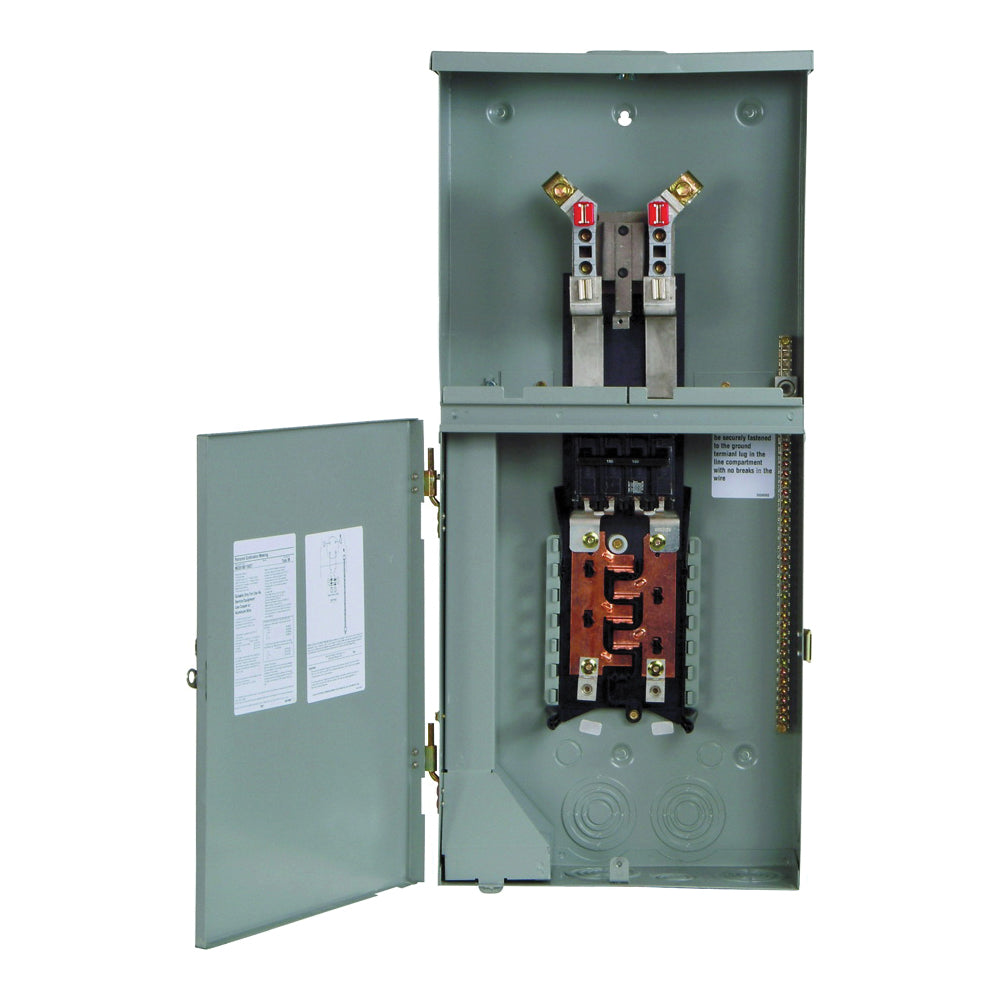

Combination meter socket. 200 A main breaker installed, Single phase, 3-wire, Insta-Wire™ neutrals. Eight spaces, 16 circuits. 120/240 V. 22,000 AIC rating. Four jaws. Tin-plated copper bus bars. NEMA type 3R outdoor enclosure. Overhead or underground feed. Feed thru lugs provided. Key hole shaped mounting holes for easy hanging. Deadfront pull ring and side hinge door. Captive dead front screw. RX style hub sold separately. UL listed.
Product Details
Manufacturer: SIEMENS
Manufacturer's Part Number: MC0816B1200RCT
Show me more Combination Load Centers
| Bus Bar Material | Copper |
| Cover/Lid Type | Ringless |
| Current Rating | 200 A |
| Enclosure Type | NEMA 3R |
| Interrupt Rating | 22 kA |
| Mounting Type | Surface |
| Number of Circuits | 16 |
| Number of Jaws | 4 |
| Number of Phases | 1 |
| Number of Spaces | 8 |
| Voltage Rating | 120/240 V |
| Wiring Configuration | 3-Wire |
| Specification Sheet | Click here to download |
