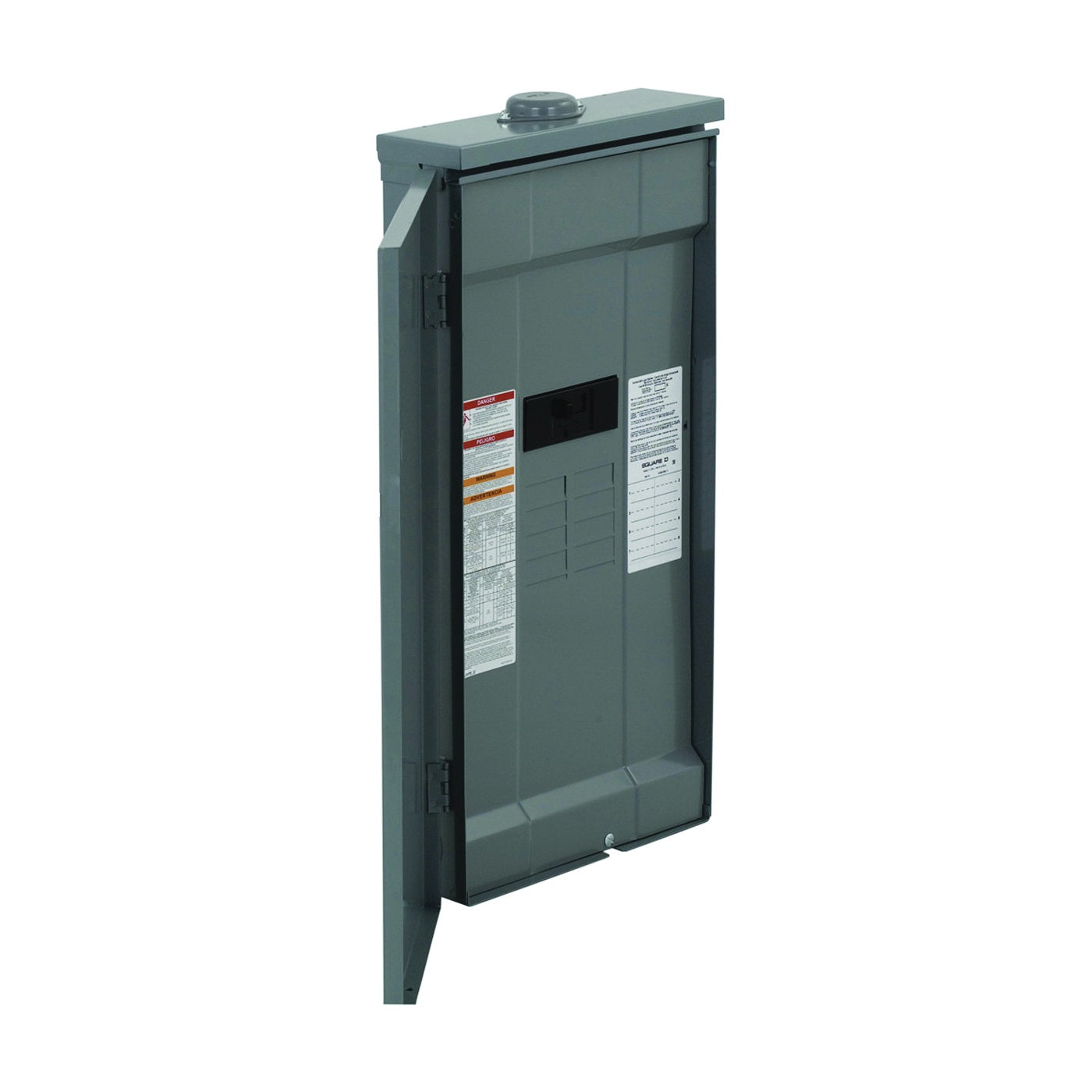

Single phase, 3-wire, insulated/bonded split neutral. 200 A, 8 spaces/16 circuits maximum. 120/240 VAC. 10,000 AIR. For mobile homes and farm applications. Overhead or underground feeds and offers feed-thru lugs. Plated aluminum bus bar. Has a 22,000 maximum short circuit current rating. Provided equipment: circuit breaker [space(1) 2P 200 A 120/240 VAC main supply ready assembled and grounding bar [space(1) ready assembled. UL listed.
Product Details
Manufacturer: SCHNEIDER ELECTRIC
Manufacturer's Part Number: HOM816M200PFTRB
Show me more Main Breaker Load Centers
Product Specifications
| Bus Bar Material | Aluminum |
| Cable Size | 4 AWG |
| Cover/Lid Type | Surface |
| Current Rating | 200 A |
| Enclosure Type | NEMA 3R |
| Includes | PK15GTAL Ground Bar and Surface Cover |
| Interrupt Rating | 22 kA |
| Mounting Type | Flush, Surface |
| Number of Phases | 1 |
| Number of Poles | 16 |
| Number of Spaces | 8 |
| Voltage Rating | 120/240 V |
| Wiring Configuration | 3-Wire |
