Whitinsville
SKU: 6720981
Brand: Square D

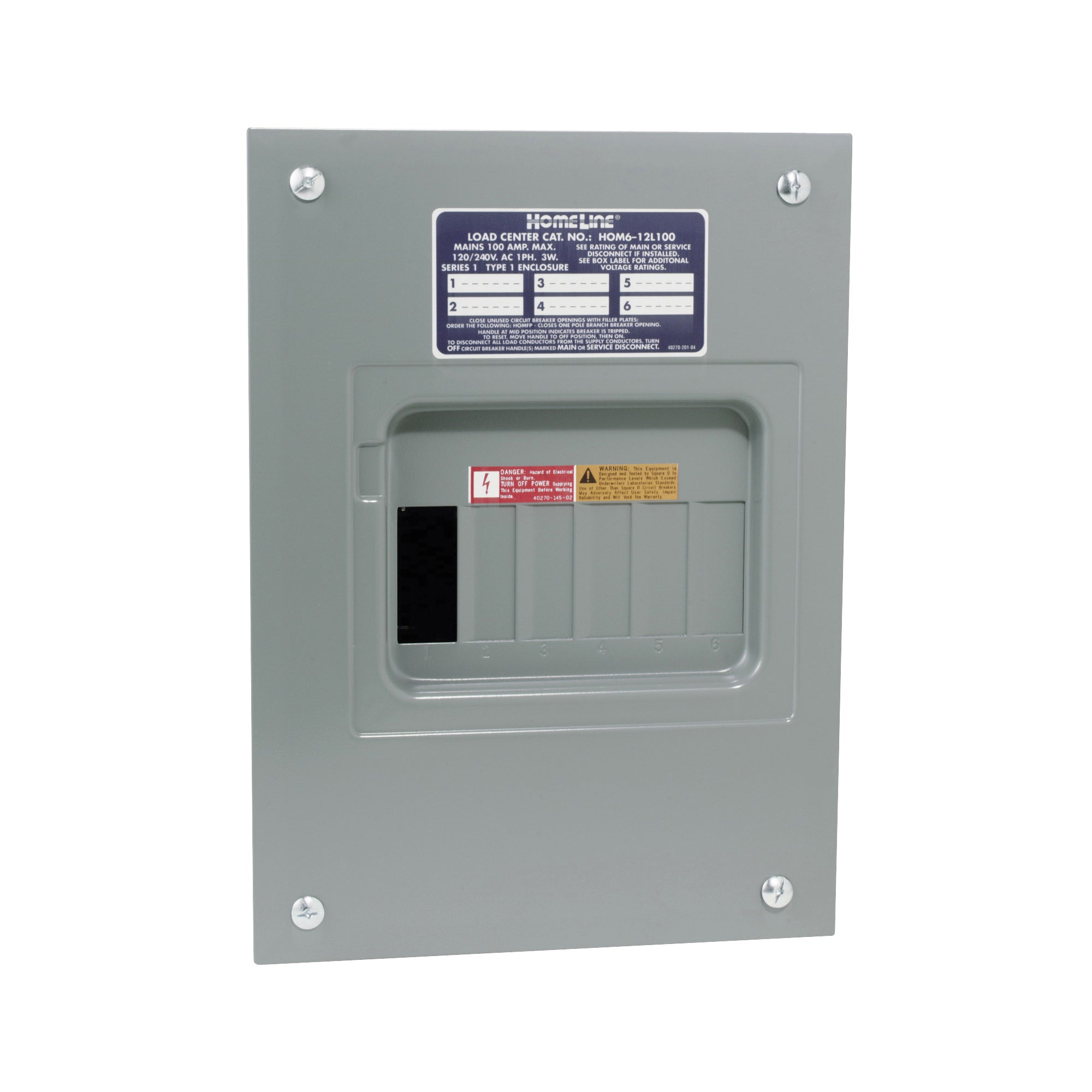

Main lug indoor load center, 100 A, 6 space/12 circuit. 1-1/2 in knockouts in the top and bottom end walls to allow for use with either overhead or underground fed electrical wiring. 22,000 short circuit current rating (SCCR) and can be fitted with a secondary surge arrestor (not included) for added protection. Single phase, 3-wire, solid neutral. UL listed.
Product Details
Manufacturer: SCHNEIDER ELECTRIC
Manufacturer's Part Number: HOM612L100FCP
Show me more Main Lug Load Centers
| Breaker/Load Center Type | Main Lug |
| Bus Bar Material | Aluminum |
| Cable Size | #8 to 1 AWG |
| Color | Gray |
| Cover/Lid Type | Flush |
| Current Rating | 100 A |
| Enclosure Type | NEMA 1 |
| Finish | Baked Enamel |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Circuits | 12 |
| Number of Phases | 1 |
| Number of Spaces | 6 |
| Voltage Rating | 120/240 V |
| Wiring Configuration | 3-Wire |
| Catalog | Click here to download |
| Specification Sheet | Click here to download |
| Instruction/Installation Manual | Click here to download |
