Whitinsville
SKU: 6721864
Brand: Square D

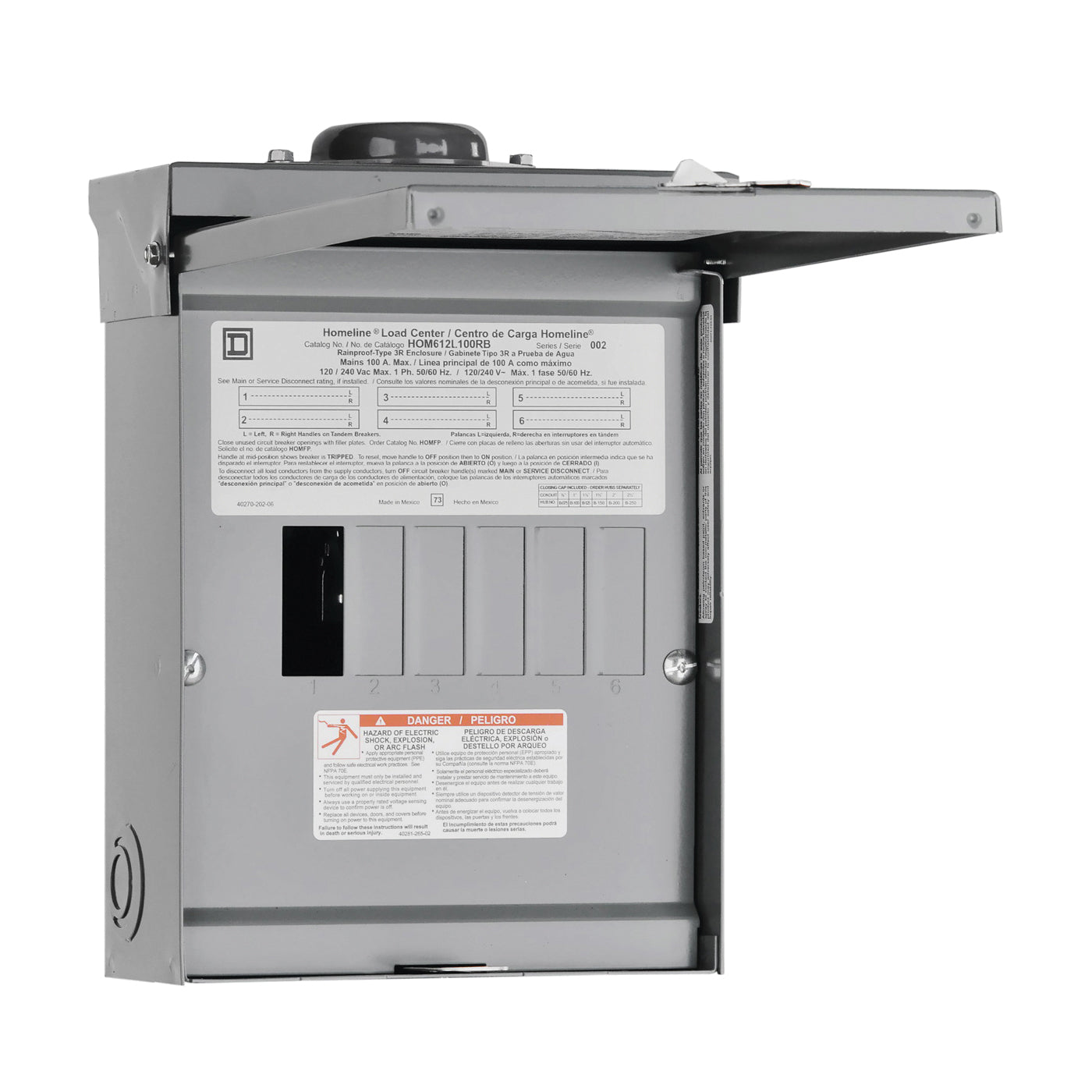

Outdoor main lug load center, 100 A, 6 space and 12 circuits. Can be wired for underground or overhead feeds with a 2-1/2 in hub on the top and a 1-1/2 in knockout on the bottom. NEMA type 3R enclosure resists rain for durable performance. ANSI certified and UL listed.
Product Details
Manufacturer: SCHNEIDER ELECTRIC
Manufacturer's Part Number: HOM612L100RBCP
Show me more Main Lug Load Centers
| Breaker/Load Center Type | Main Lug |
| Bus Bar Material | Aluminum |
| Cable Size | #8 to 1 AWG |
| Color | Gray |
| Cover/Lid Type | Surface |
| Current Rating | 100 A |
| Enclosure Type | NEMA 3R |
| Finish | Baked Enamel |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Circuits | 12 |
| Number of Phases | 1 |
| Number of Spaces | 6 |
| Voltage Rating | 120/240 V |
| Wiring Configuration | 3-Wire |
| Catalog | Click here to download |
| Specification Sheet | Click here to download |
| Instruction/Installation Manual | Click here to download |
