SKU: 6719793
Brand: Square D

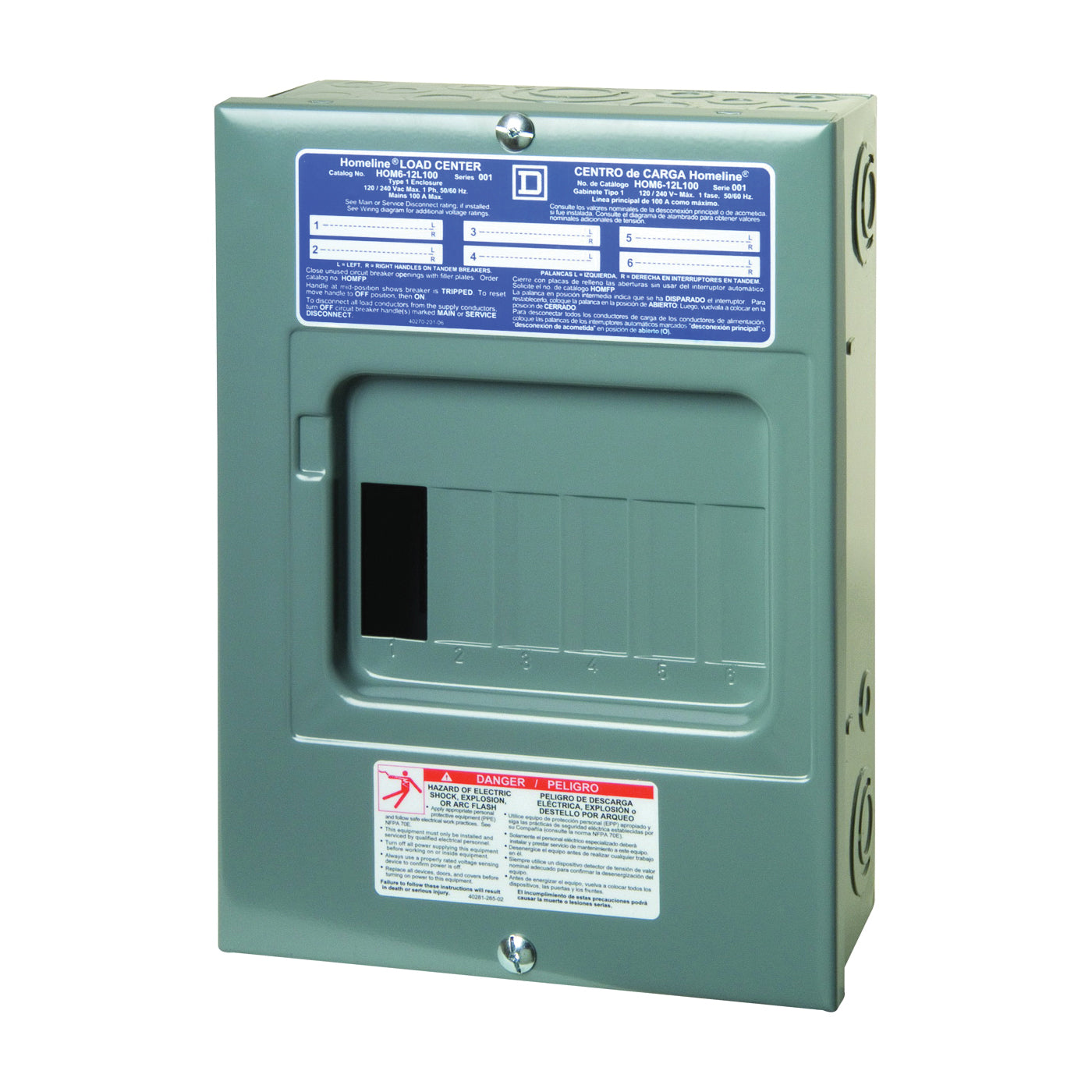

Main lug indoor load center, 100 A, 6 space/12 circuit. NEMA type 1 enclosure. Single phase, 3-wire, solid neutral. Expandable load center capacity with the use of tandem or quad breakers. CSA approved for vertical, horizontal or inverted mounting. Accepts aluminum or copper conductors. Approved to only accept Canadian Homeline breakers.
Product Details
Manufacturer: SCHNEIDER ELECTRIC
Manufacturer's Part Number: HOM612L100SCP
Show me more Main Lug Load Centers
| Breaker/Load Center Type | Main Lug |
| Bus Bar Material | Aluminum |
| Cable Size | #8 to 1 AWG |
| Color | Gray |
| Cover/Lid Type | Flush |
| Current Rating | 100 A |
| Enclosure Type | NEMA 1 |
| Finish | Baked Enamel |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Circuits | 12 |
| Number of Phases | 1 |
| Number of Spaces | 6 |
| Voltage Rating | 120/240 V |
| Wiring Configuration | 3-Wire |
| Catalog | Click here to download |
| Specification Sheet | Click here to download |
| Instruction/Installation Manual | Click here to download |
