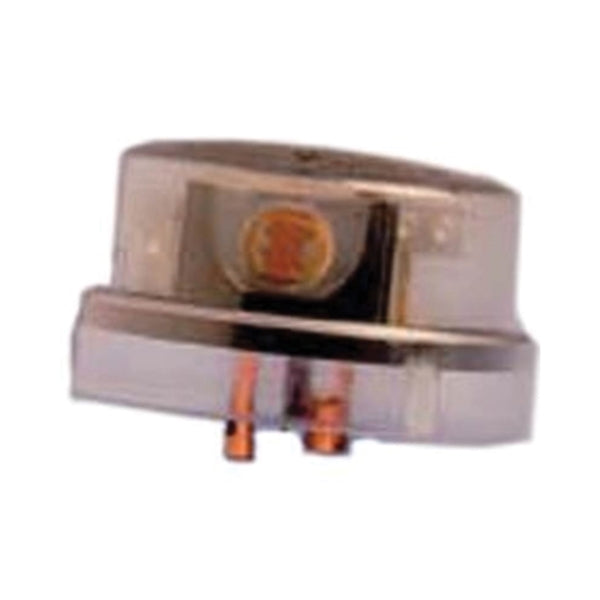

Electrical components. Noryl housing. Replacement photocontrol for Mercury Vapor and/or High-Pressure Sodium luminaires. 1,000 W. Heavy-duty thermal bimetal switch. 30 to 45 secs time delay. Fail mode is on. 240 V with a range of 185 to 305 V. UL and CSA listed, ANSI C136.10 compliant.
Product Details
Manufacturer: TE CONNECTIVITY
Manufacturer's Part Number: CPGI-ALR-LC-208-2
Show me more Specialty Lighting Accessories
Product Features
- 30 to 45 secs time delay
- SPST thermal bi-metallic switch
- -40 to 65 deg C temperature range
- Heavy-duty thermal bi-metal switch
- 1/2 in cadmium sulfide cell light sensor
- Tyco Electronics LC Series offers a locking style control ideal for residential lighting applications
- The LC Series locking-type photo control offers an economical and cost-effective means of controlling residential lighting systems from dusk to dawn
- LC controls are a ideal and reliable solution for lighting driveways, patios, decks, entryways or other areas around the home where security lighting is desired
Product Specifications
| Dimensions | 2.93 in W x 1.98 in H |
| Material | Noryl/Polycarbonate |
| Specifications | 240 V, 1000 W, 50 to 60 Hz, 1800 VA Ballast Load Rating, 1.5 Fc Turn On, 4:1 Off/On Ratio |
| Type | Residential-Grade |
Product Documents
| Specification Sheet | Click here to download |
