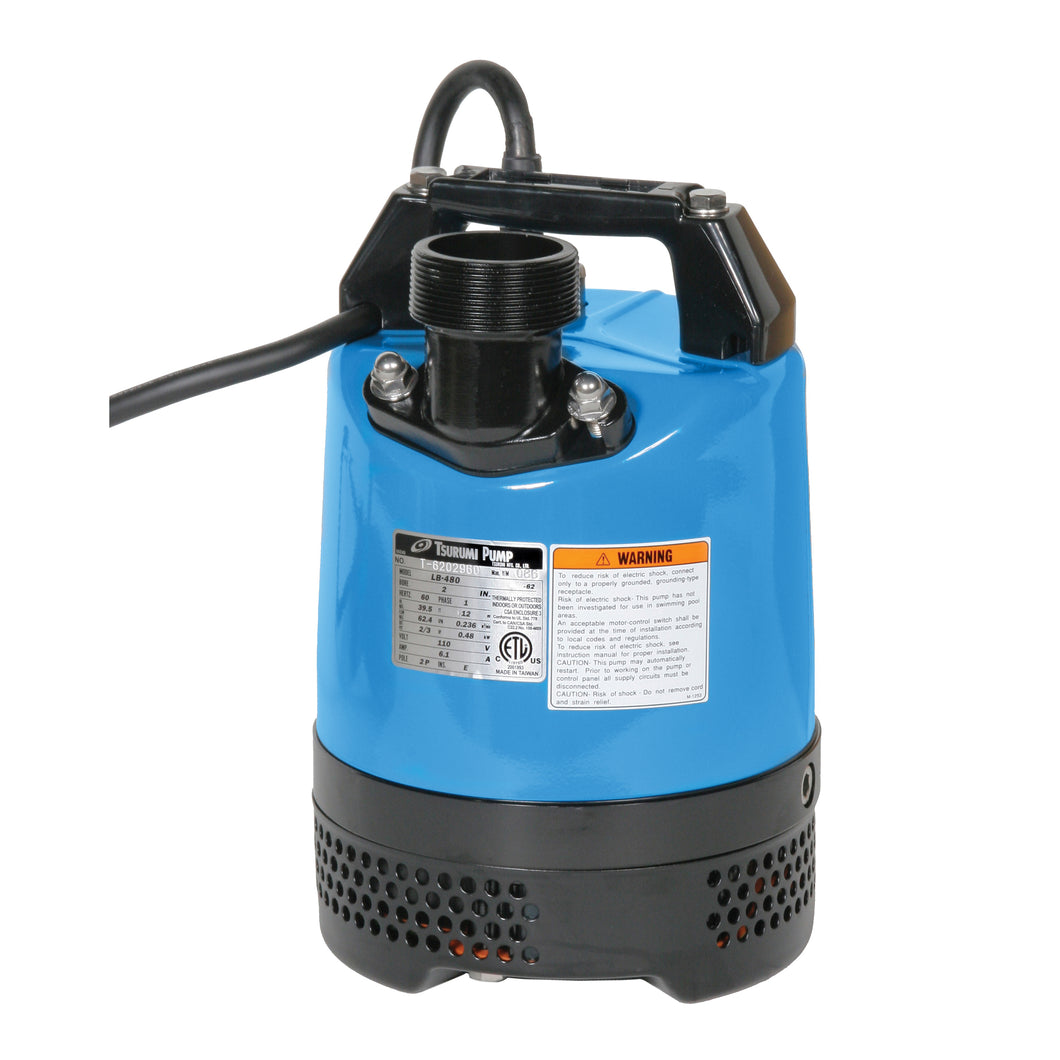

LB-480 Slimline design pump allows to fit into 8 in pipes. Powerful pumps built with durable materials in an easy handling design. Top discharge provides maximum motor cooling efficiency allowing continuous duty operation at low water levels and extended dry-run capability.
Product Details
Manufacturer: TSURUMI PUMP
Manufacturer's Part Number: LB-480-62
Show me more Submersible Sump Pumps
Product Features
- Float switch for automatic operation
- Oil lifter provides lubrication of the seal faces
- V-ring seal design protects mechanical seal from abrasive particles
- Dual inside mechanical seal with SIC faces provides longer operational life
- Urethane, semi-vortex impeller and wear plates for maximum durability and maintaining pump performance
Product Specifications
| Cord Size | 32 to 50 ft |
| Current Rating | 6.1 A |
| Dimensions | 7-11/16 in Dia x 11-1/4 in H |
| Flow Rate | 15.9 gpm |
| Frequency Rating | 60 Hz |
| HP Rating | 0.66 hp |
| Material | Aluminum |
| Maximum Head | 39-1/2 ft |
| Number of Phases | 1 |
| Outlet Connection Size | 2 in |
| Temperature Rating | 104 deg F |
| Voltage Rating | 115/230 V |
Product Documents
| Owners/User Manual | Click here to download |
| Specification Sheet | Click here to download |
