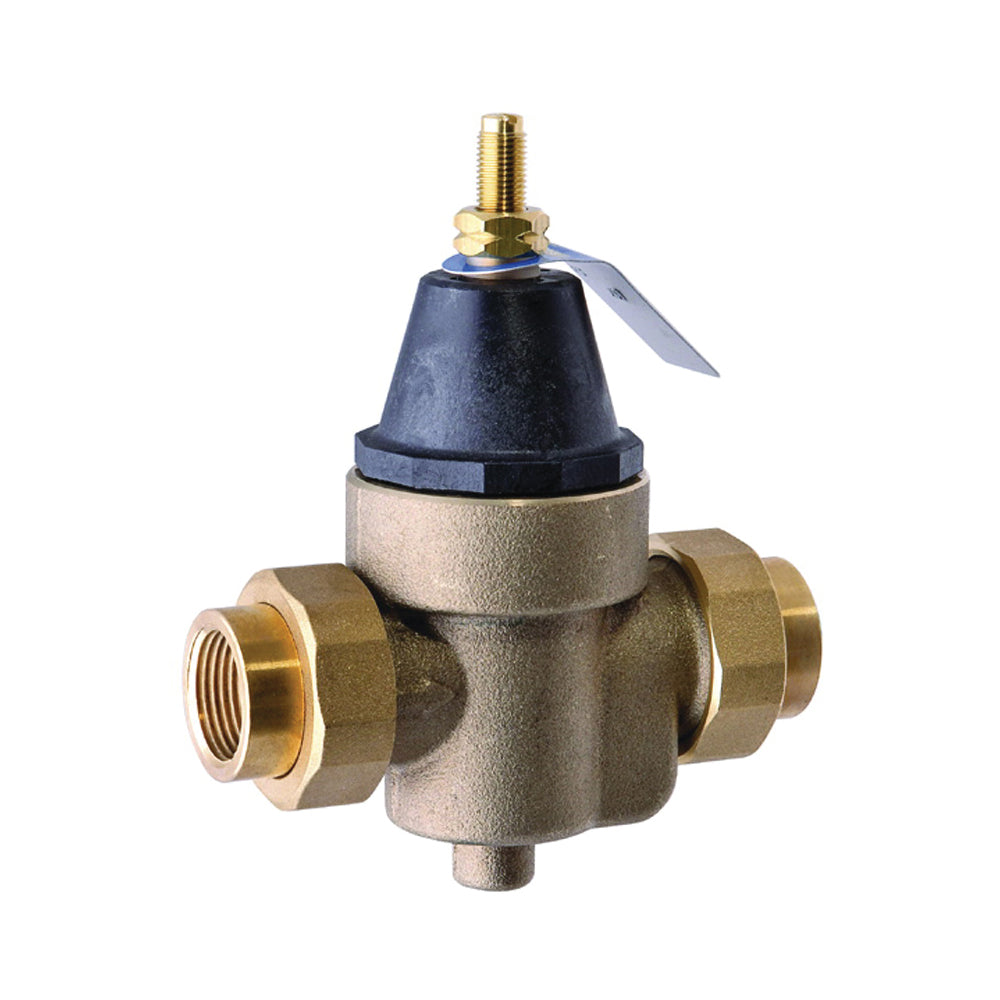

Series LFN45B lead-free water pressure reducing valves are used in commercial and residential applications to reduce incoming water pressure to a predetermined level, thereby protecting downstream plumbing system components and reducing water consumption. Designed for easy accessibility and serviceability without removing the valve from the line. Standard pressure setting is 50 psi with an adjustable range of 25 to 75 psi (172 to 517 kPa).
Product Details
Manufacturer: WATTS WATER TECHNOLOGIES
Manufacturer's Part Number: 1 LFN45BM1-U
Show me more Pressure Relief Valves
Product Features
- Designed for easy in-line servicing
- Sealed spring cage for accessible outdoor or pit applications
- Corrosion-resistant adjusting screw and sealed cage for waterworks pit installations
- Integral stainless steel strainer and bypass feature that controls thermal expansion pressure
Product Specifications
| Body Material | Silicone Alloy |
| Connection Type | NPT x NPT Female |
| Media | Water |
| Nominal Size | 1 in |
| Operating Pressure | 25 to 75 psi |
| Softgoods Material | Thermoplastic |
| Temperature Rating | 33 to 180 deg F |
Product Documents
| Specification Sheet | Click here to download |
